SPECIFICATIONS

Name: Discover 30v10a Dual Ac/dc Power Supply Variable Lab Power Source 60v Adjustable Laboratory Voltage Current Regulator Stabilizer Unit Usb Gadget [5uhBzFGV]
Brand: technovaprecision.com
SKU: HBS18955130571
Price: 41.99 USD
Availability: InStock
Rating: 3.85 (935 reviews)

Brand Name: KUAIQU,NICE-POWER

Certification: CE,FCC,RoHS,CE,FCC,RoHS

Function 1: 4-Digits LCD display

Function 10: For electronics repair

Function 11: variable Voltage Current Power Supply For load testing

Function 12: Bench Power Supply Buck Converter For lithium battery charging

Function 13: Stabilizer Switching Power Supply

Function 14: Portable DC Power Supply

Function 15: Adjustable Digit Display

Function 16: Bench Source DIY

Function 17: Voltage Regulator Stabilizer

Function 18: Switch Power Supply

Function 19: 5V/2A USB Interface

Function 2: dual channel

Function 20: Bench Power Supply with Encoder Knob

Function 21: Lab Source Power

Function 22: High Precision 4-Digits LCD Display

Function 3: Temperature Controlled Fan

Function 4: series connection & parallel connection

Function 5: OCP short circuit alarm

Function 6: Variable Lab Power Supplies Voltage Regulator

Function 7: Precise adjustment

Function 8: Stabilizer Switching Power Supply

Function 9: power supply DC 120V 3A 360W

Hign-concerned Chemical: None

Model Number: SPS3010-2KD

Origin: Mainland China

Output Current: 0-10A

Output Frequency: 50Hz 60Hz

Output Power: 301 - 400W

Output Type: SINGLE

is_customized: Yes

specifications: DC 30V 10A DC 60V 5A

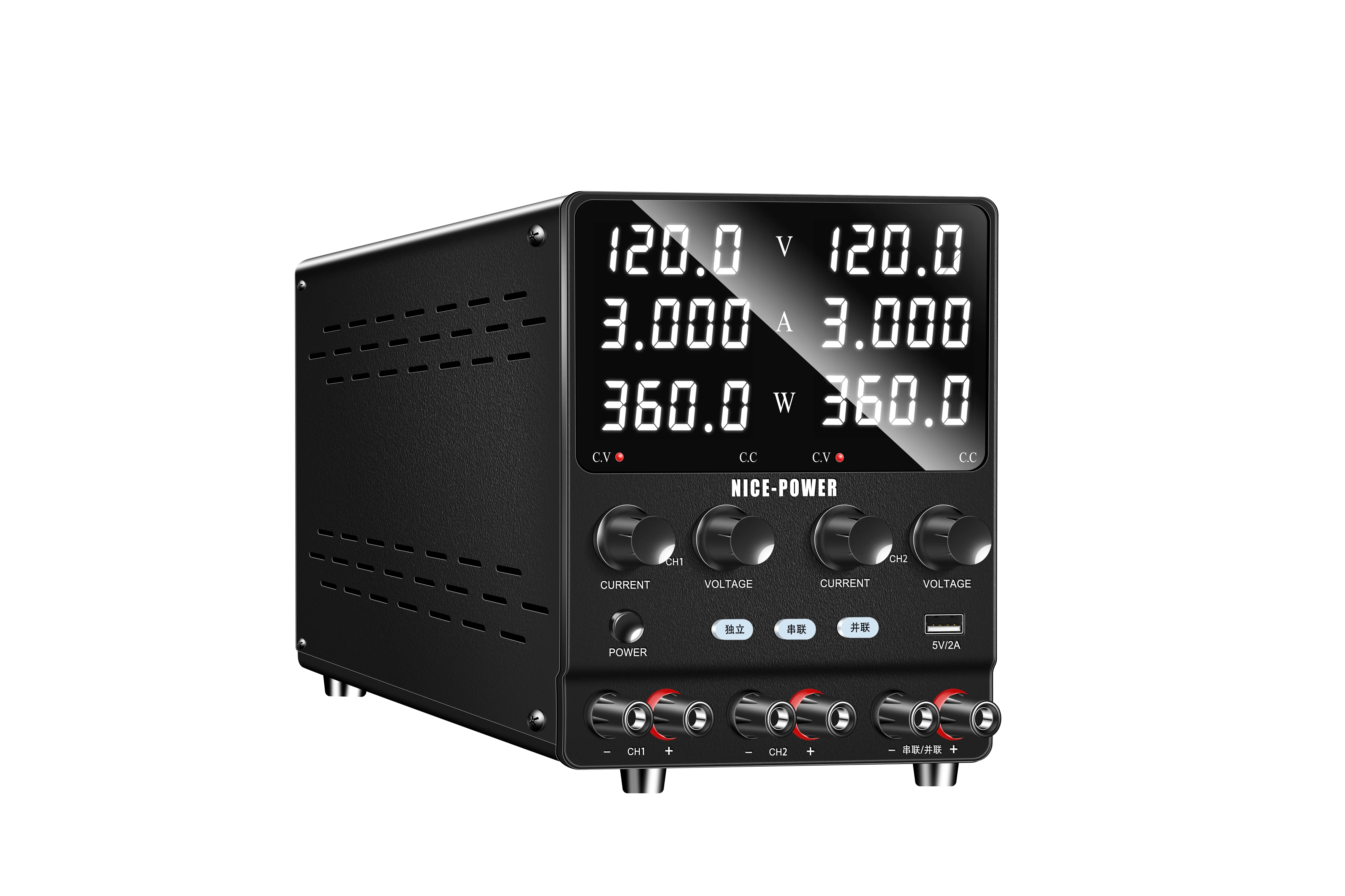

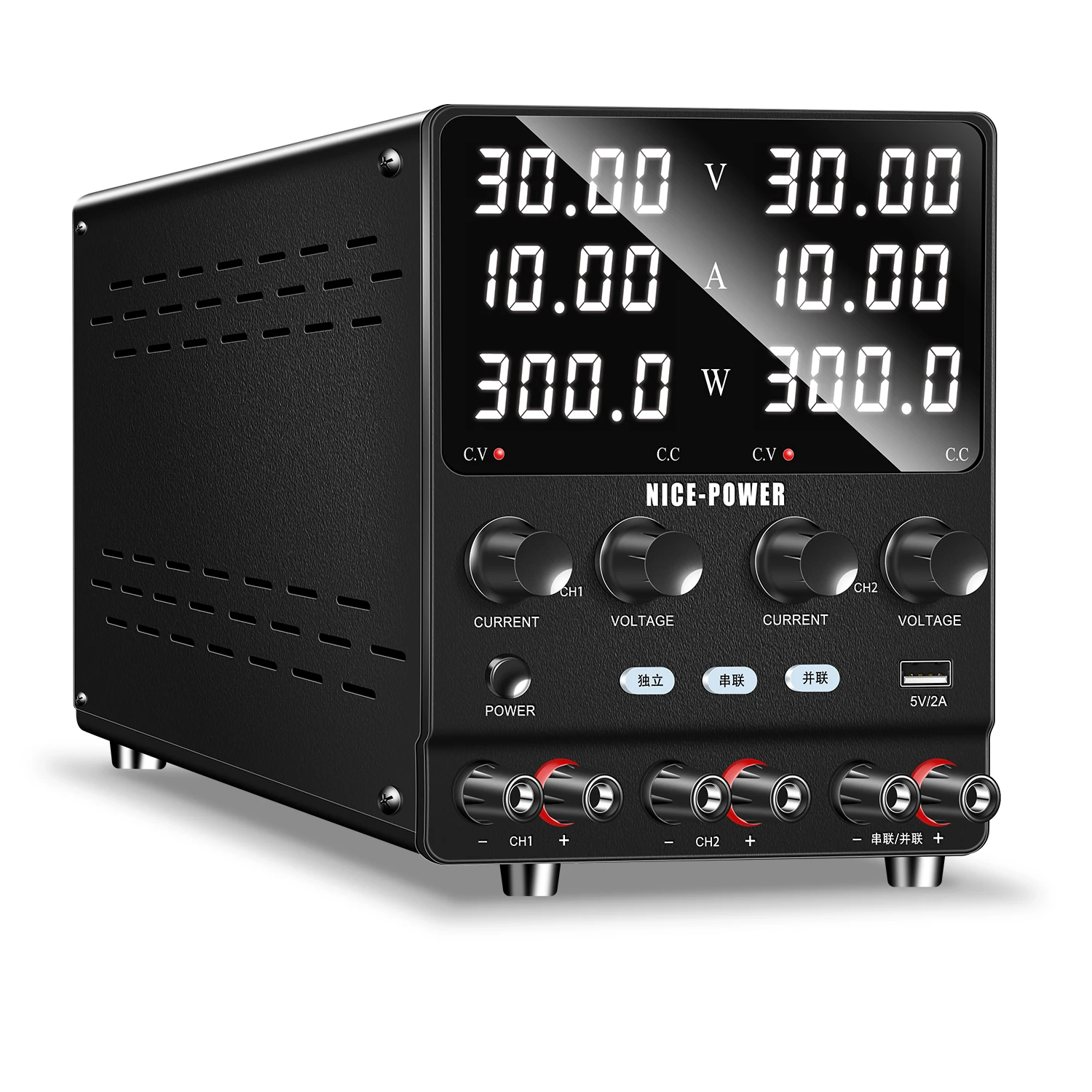

Model Number:	SPS3010	SPS305-2KD	SPS3010-2KD	SPS605-2KD	SPS1203-2KD
Voltage & current	0-30V 0-10A	0-30V 0-5A	0-30V 0-10A	0-60V 0-5A	0-120V 0-3A
SER mode	NO	0-90V 0-5A	0-90V 0-10A	0-120V 0-5A	0-240V 0-3A
PAR mode	NO	0-30V 0-10A	0-30V 0-20A	0-60V 0-10A	0-120V 0-6A
Precise numerical adjustment	Coarse adjustment + fine adjustment	✓	✓	✓	✓
5V/2A USB Output	✓	✓	✓	✓	✓
Power display	✓	✓	✓	✓	✓
Screen	LED	LCD	LCD	LCD	LCD
Automatically switch C.C/C.V	✓	✓	✓	✓	✓
Mul-protection (OCP, OVP...)	✓	✓	✓	✓	✓
Intelligent fan	✓	✓	✓	✓	✓
weight（KG）	1.7	3	3	3	3

【Buy 1 and get 4 Spend the price of 1 power supply and get 4 power supplies. Meet all your needs】

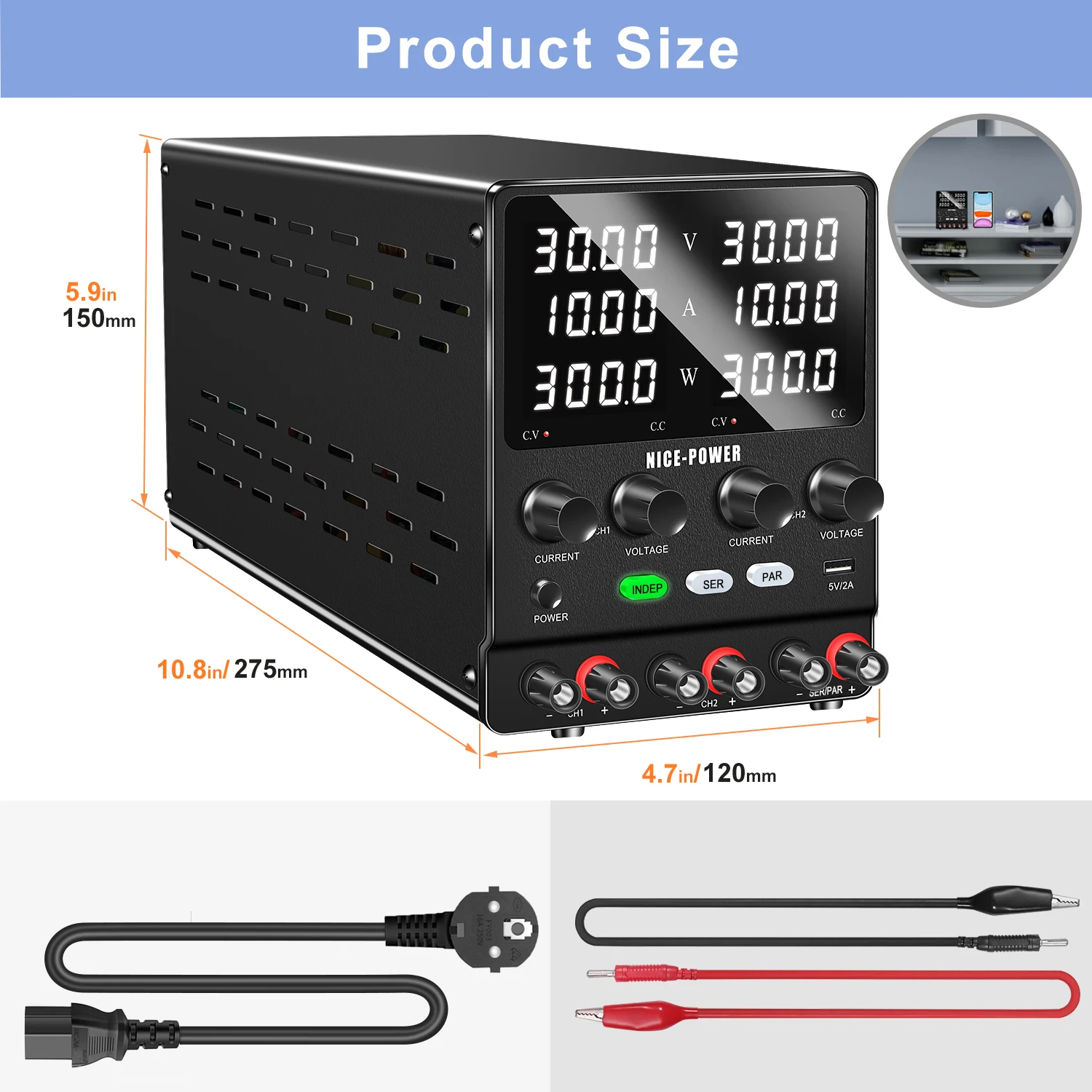

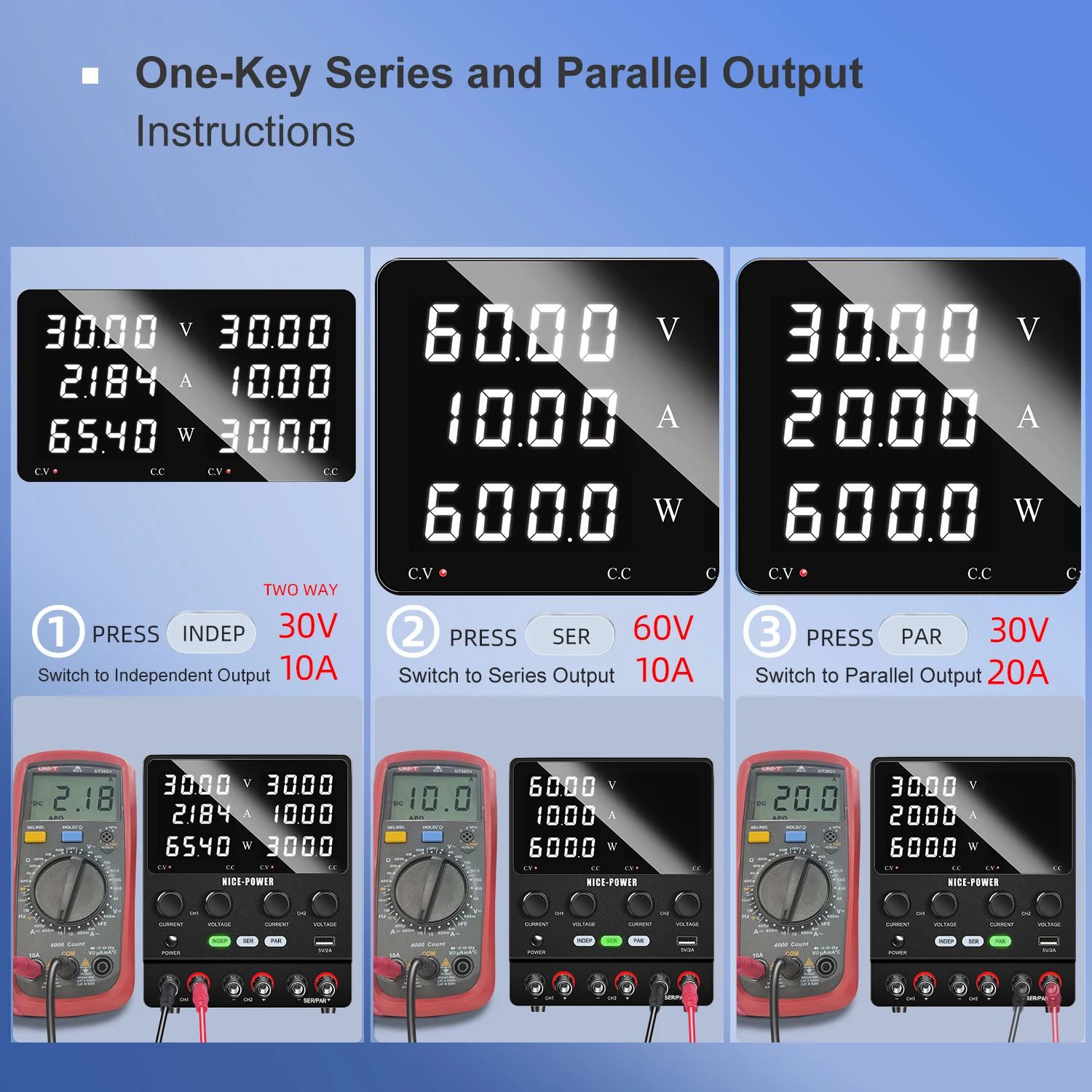

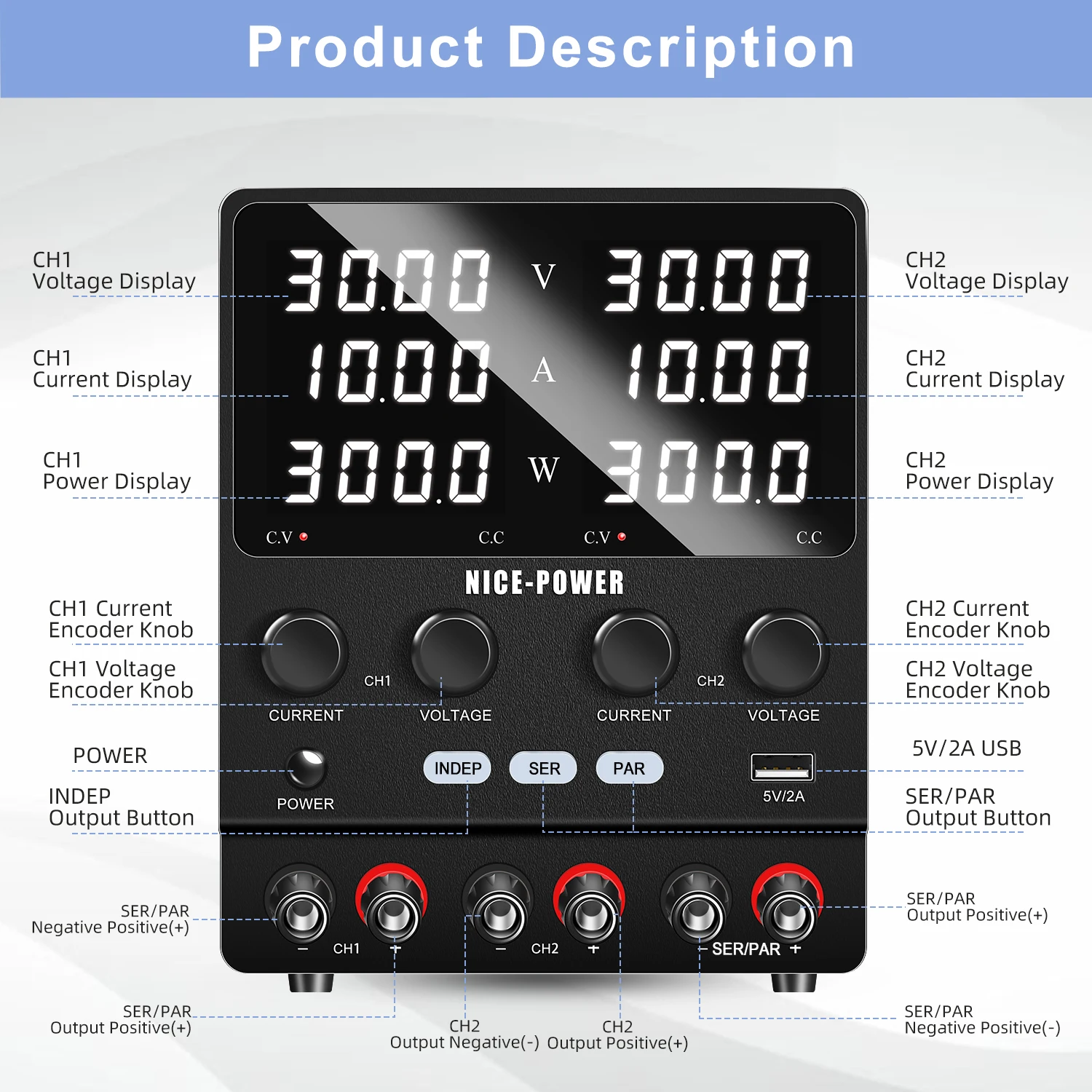

INDEP: Set the voltage and current. By pressing the "INDEP" button, the left and right sides can be controlled independently and used simultaneously, which is equivalent to two power supplies.

SER: SER mode, set the current and voltage. Press the ""SER"" button, the voltages will be added, the current will remain unchanged, and the data will be displayed on the left side of the screen. This is a high voltage power supply at this time.

PAR: PAR mode, set the current and voltage. Press the "PAR" button, the current will be added, the current will remain unchanged, and the data will be displayed on the left side of the screen. At this point this is a high current power supply.

【Multiple Protection】

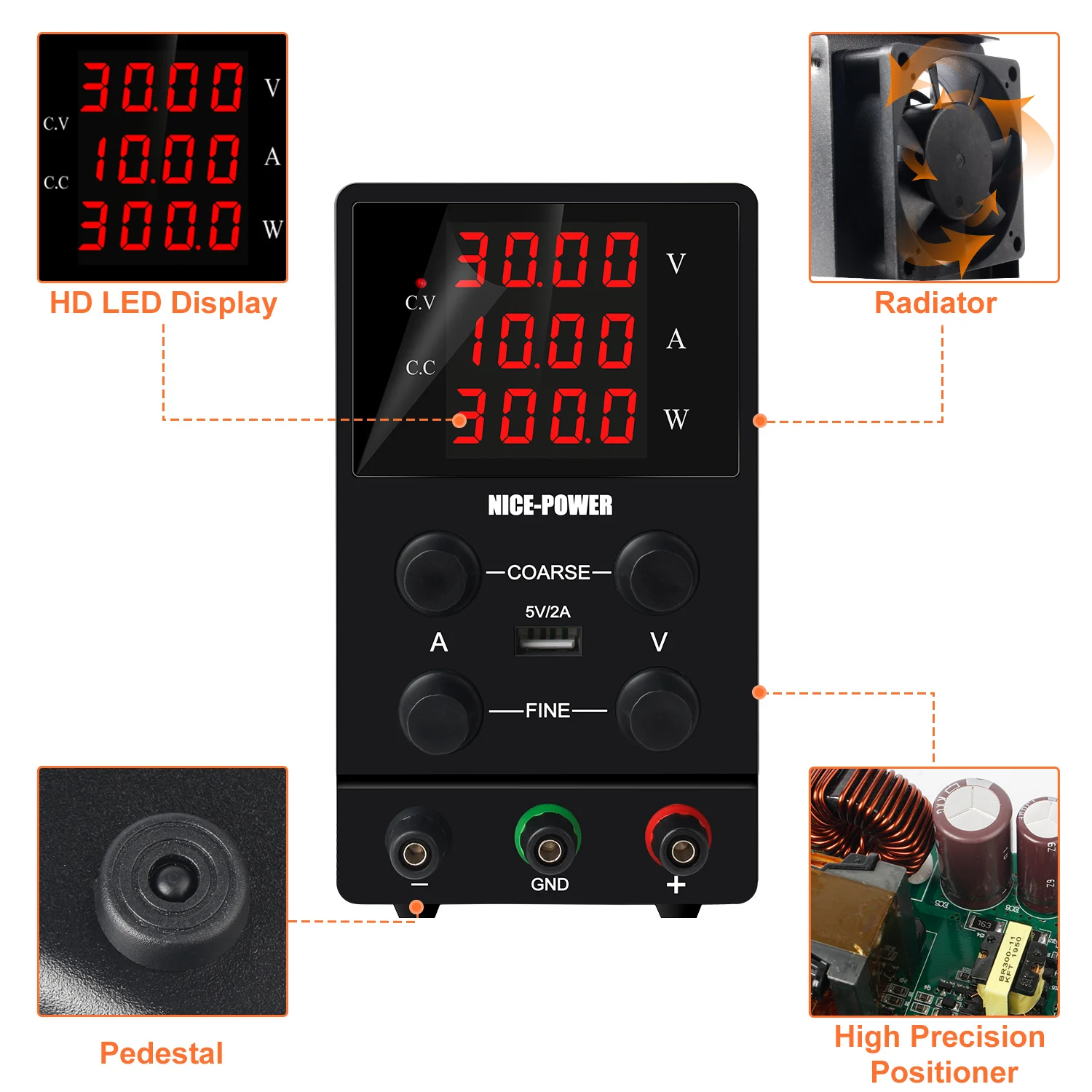

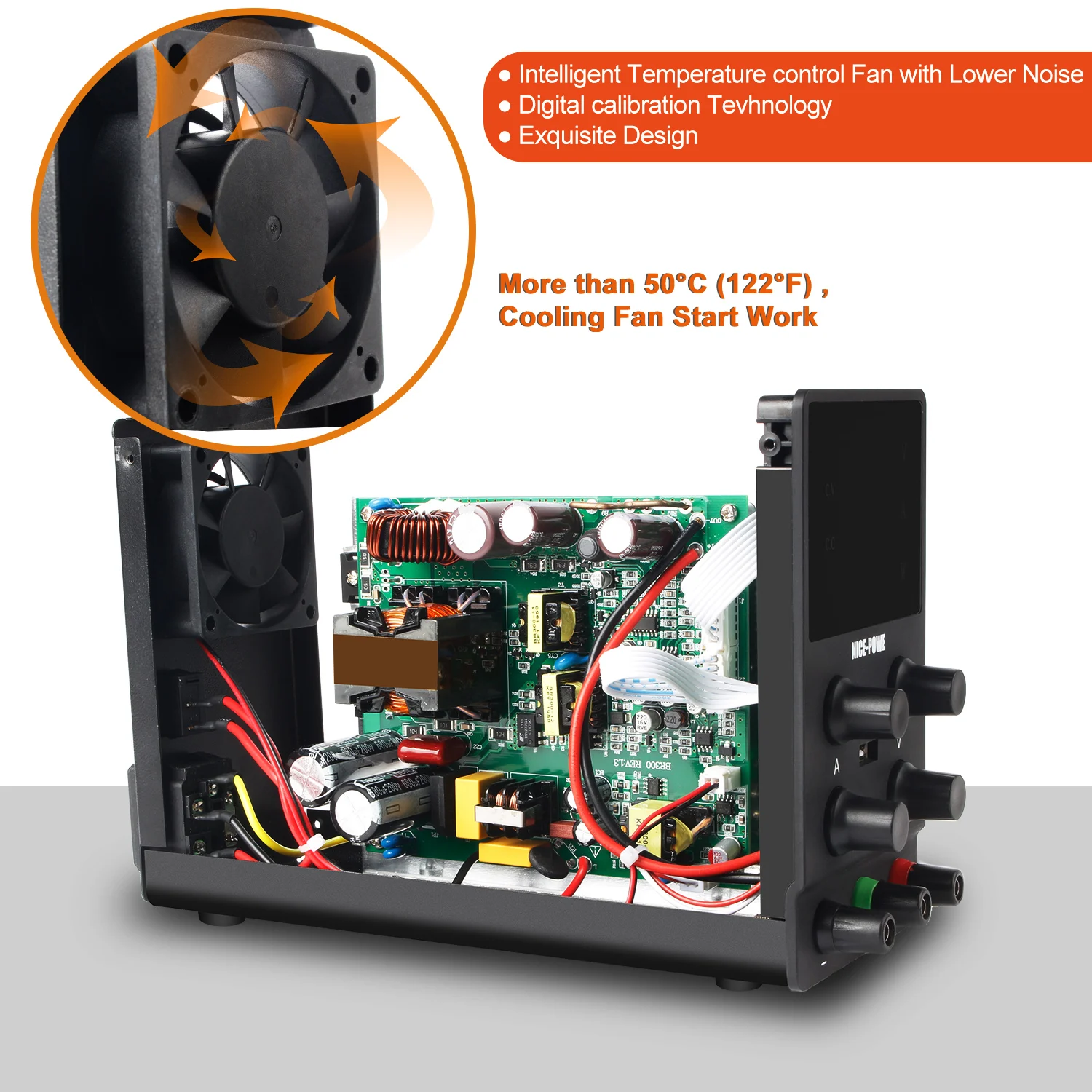

Power Supplies Voltage Regulator has passed FCC/CE certification. Built-in fan for cooling (temperature >122°F/50°C, fan intelligently turned on), the power supply comes with multiple protections such as overvoltage, overcurrent, overpower, overtemperature, short circuit, leakage, wiring errors and other powerful protection functions to extend the life At the same time, the power supply works efficiently and can work continuously for 24 hours without stopping.

【High precision, adaptable to multiple scenarios】

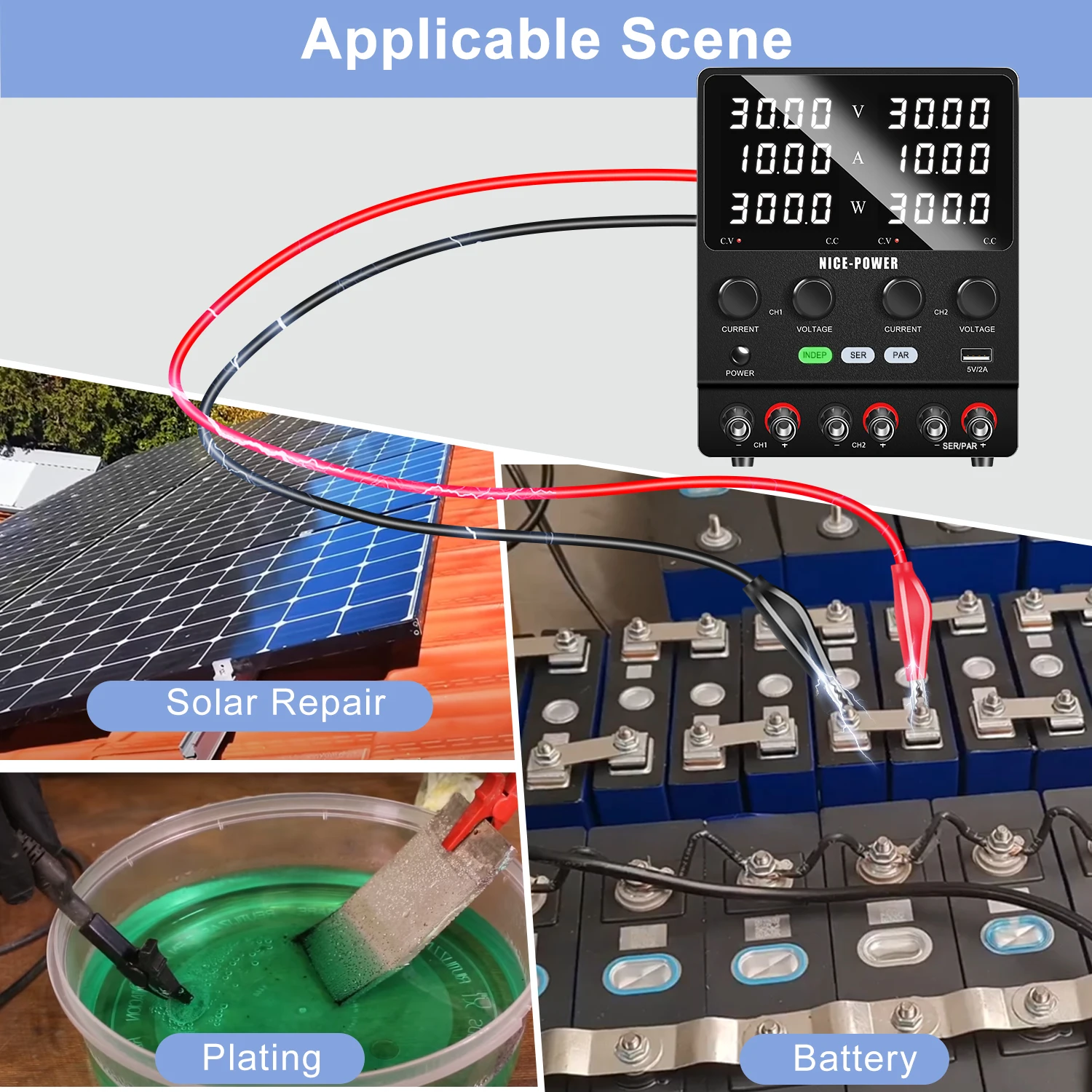

DC Power Supply has high precision, low arc, low noise and low ripple, with an accuracy of 0.01V 0.001A, and an output ripple of less than 200mv. It uses high-quality materials and circuits and can adapt to severe cold and heat. You can use it in multiple scenarios :

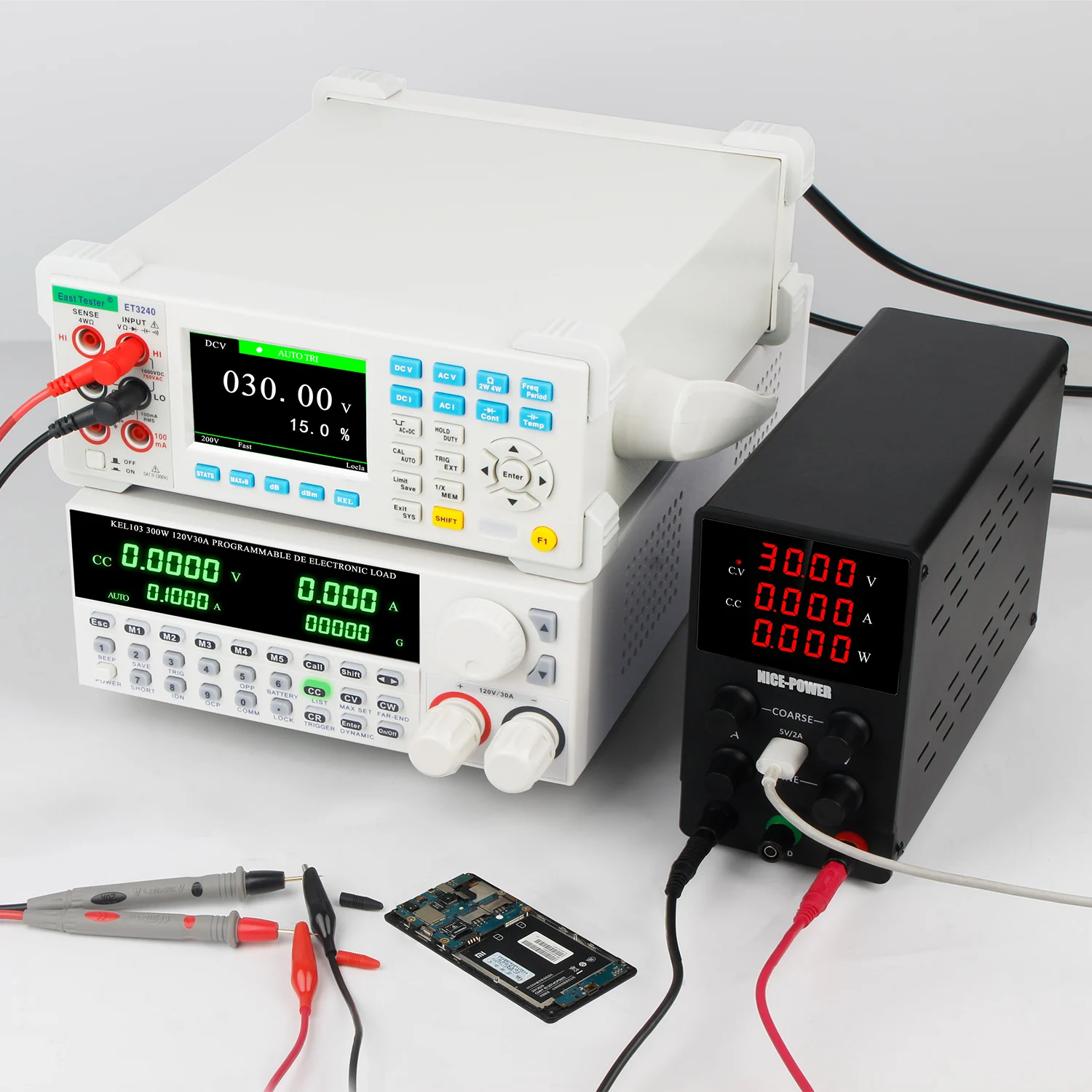

①For Factory Production line test.

②For Mobile phone, computer repair, electrical appliance maintenance, Car DVD, car audio, etc.

③For Product aging, electroplating, titanium oxide, electrolysis, such as resistors, jewelry, capacitors, relays, DC motors, LEDs, etc.

④For Charge the battery (Include car battery).

⑤For Laboratory, scientific research teaching, factory, maintenance power supply, school, scientific research, production line use, etc.

⑥For Security monitoring system, fire protection system, building automation systemPacking List include:

【Global availability and high comfort】

We are equipped with Stabilizer Switching Power Supply EU Plug/UK Plug/AU Plug/US Plug plug according to the recipient country; 220V/110V input voltage is optional; Stabilizer Switching Power Supply uses LCD screen, which will not hurt your eyes even if you stare at it all day

Product ParametersSpe
Input voltage	AC 110V 50HZ or 110V 60HZ
Max Output voltage	DC 0- 240V
Max Output Current	DC 0-20A
Display Accuracy	1%1 word (three / three and a half digital display, voltage resolution 0.1V, current resolution 0.1A)，0.1%1 word (four / four semi-digital display, voltage resolution 0.01V, current resolution 0.01A)
boot delay	1-2S Shutdown Delay1-6S (depending on the load)
Voltage Stability	≤0.05% + 1mV
The current stability	≤0.1% + 10mA
Load stability	CV≤0.05% + 1mV，CC≤0.05% + 10mA
Ripple and Noise	CV≤10mV，CC≤20mA (RMS)
Overall efficiency	≥80% (under full load test)
Working environment	-10- + 40Relative humidity 20% -80% (non-condensing)
Storage Environment	-20- + 80Relative humidity 20% -70% (non-condensing)
Pressure test	Input - Output1.5KVAC / 1 Minute，Input - Housing1.5KVAC / 1 Minute，Output - Housing500VAC / 1 Minute
Ground Resistance	<20mΩ

what you will receive
1* DC Power Supply;1*Power Adapter(EU/AU/UK/US we will send according to you country);Power Cord;Output Load Cord;User's Manual;Warranty Card.

【Multiple specifications, easy adjustment, the screen value can be displayed to 0.001】

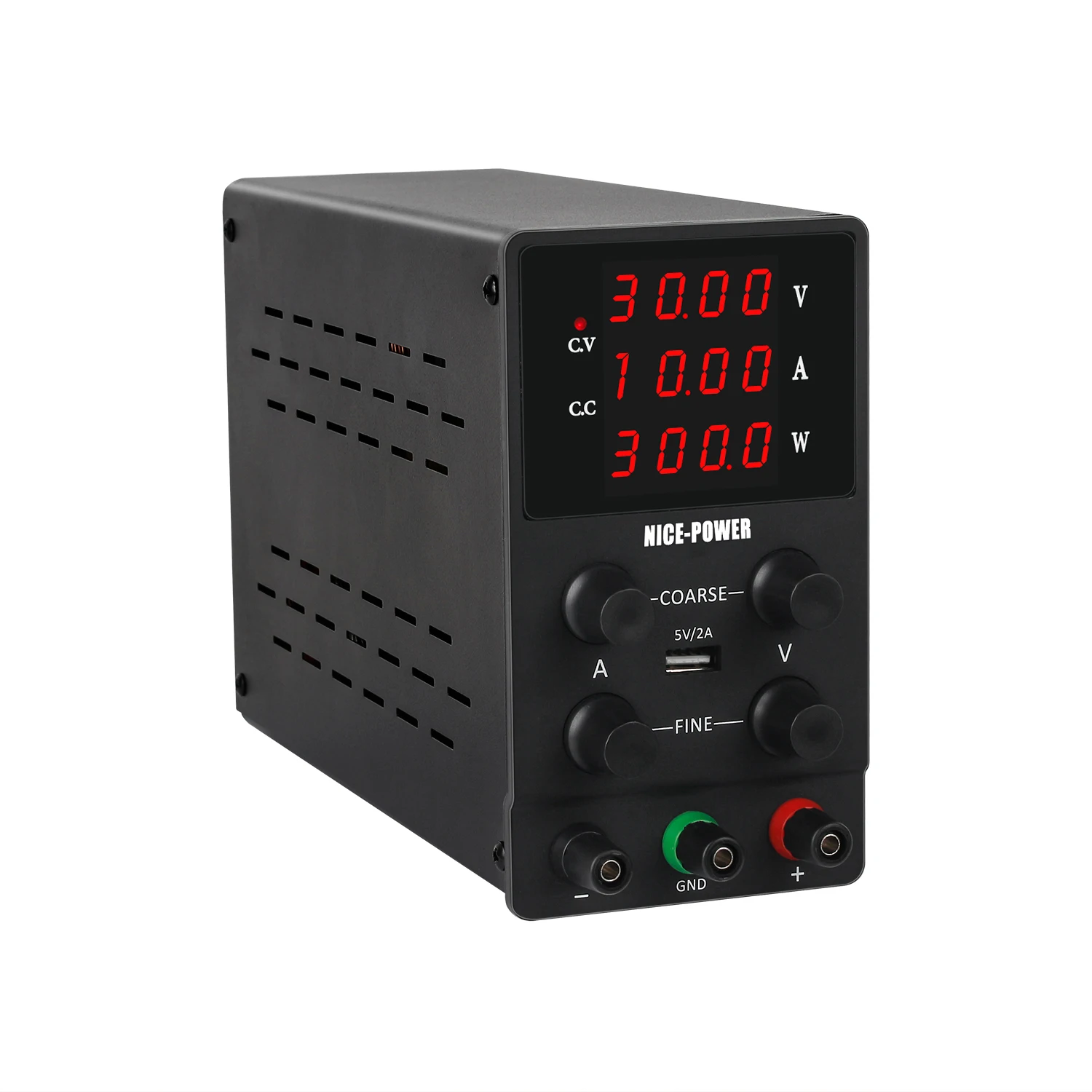

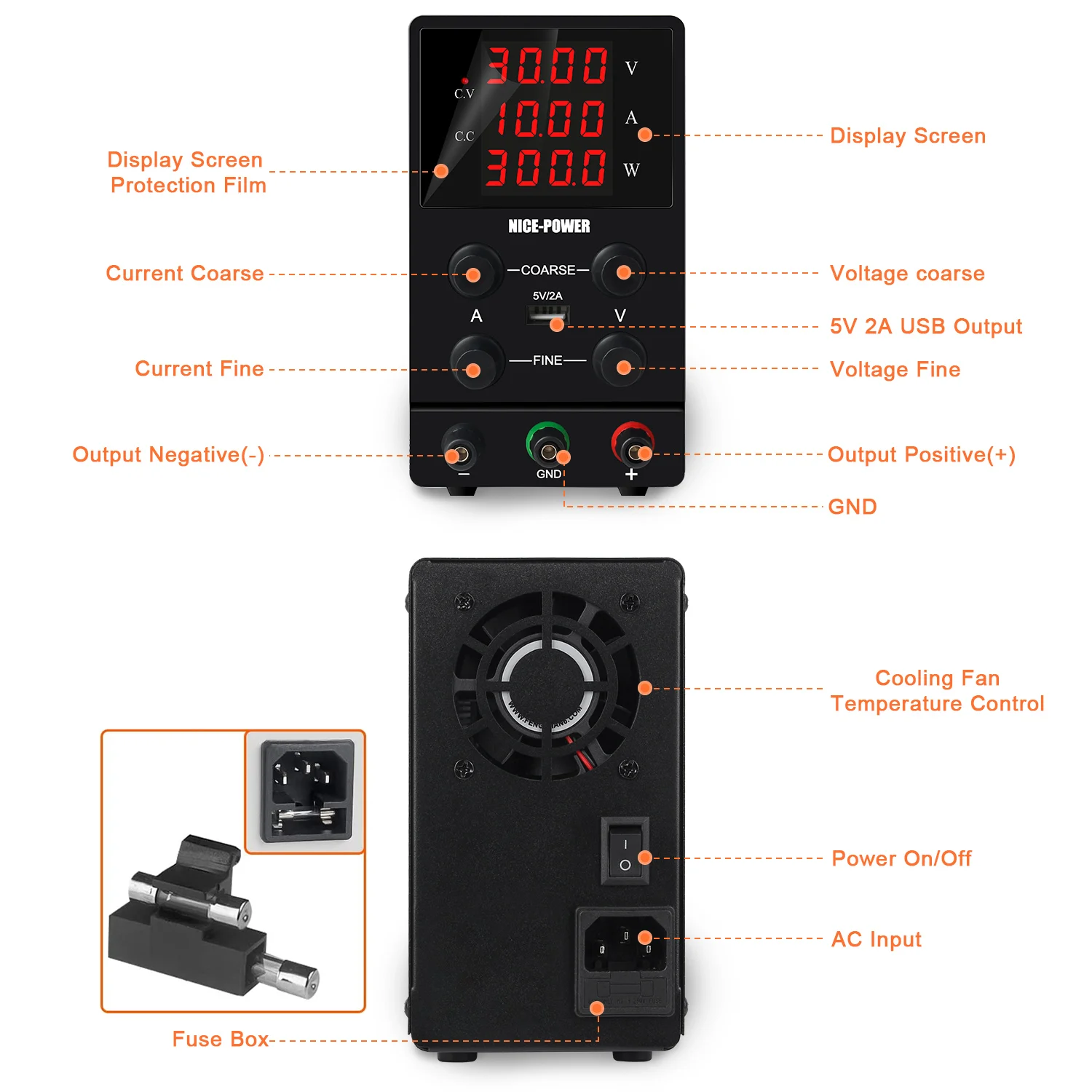

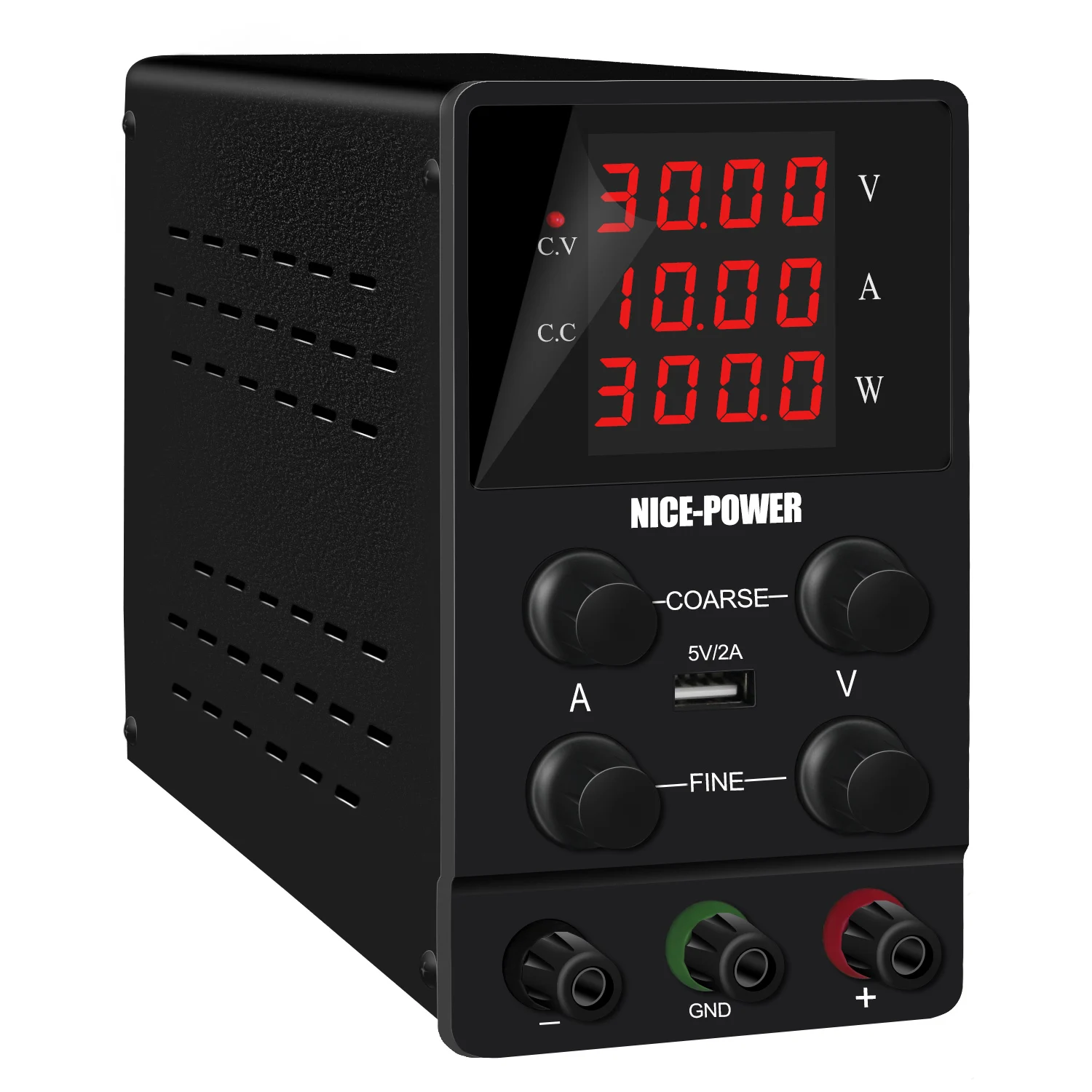

Stabilizer Switching Power Supply comes in a variety of specifications for you to choose from (30V 10A, 60V 5A, 120V 3A); the power supply has a Coarse + fine button. Through the potentiometer switch, you can quickly adjust the value you want; the current display value is 0.001, the voltage is 0.01, and the power is 0.001, which is suitable for testing that requires compact electronic devices.

【Mul-protection】

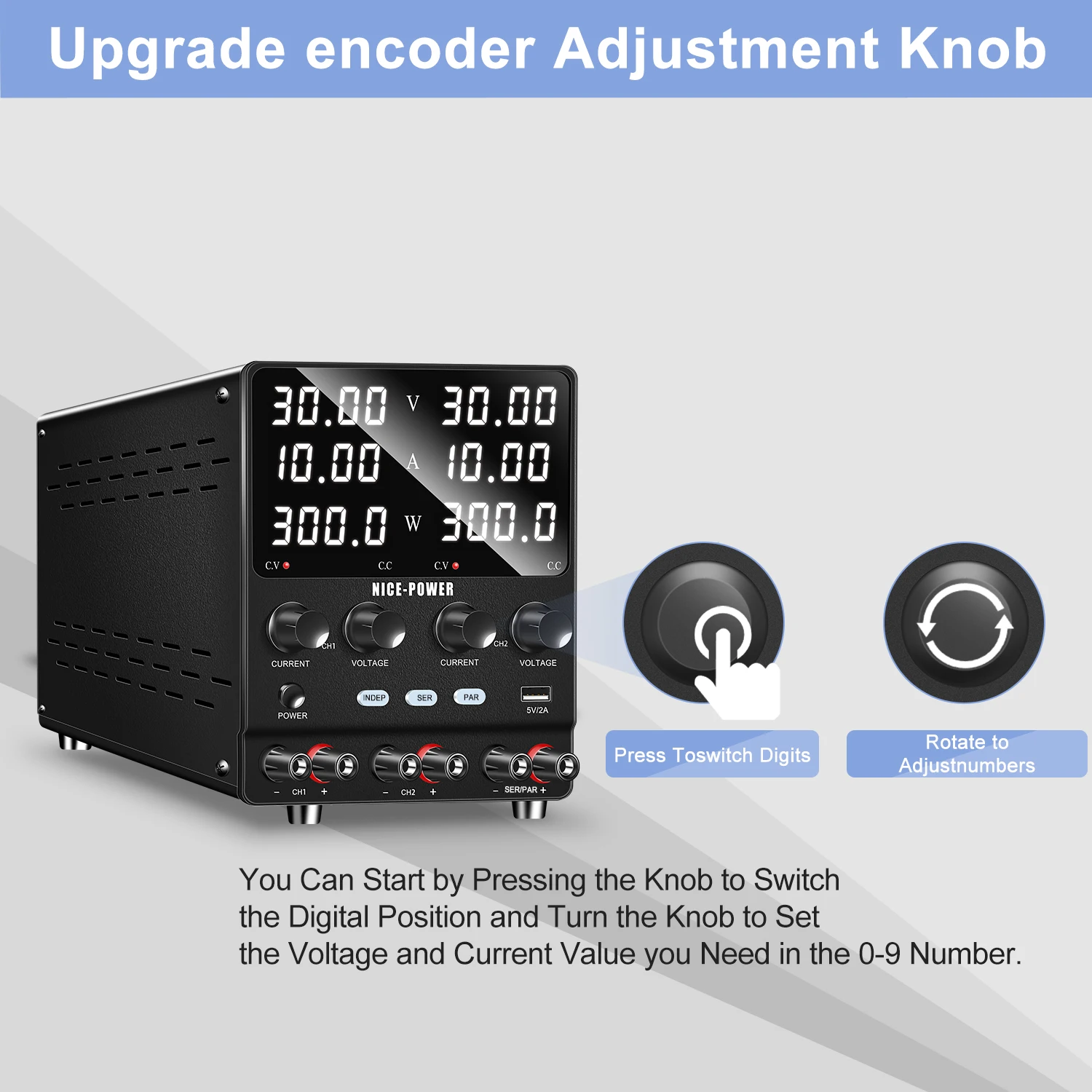

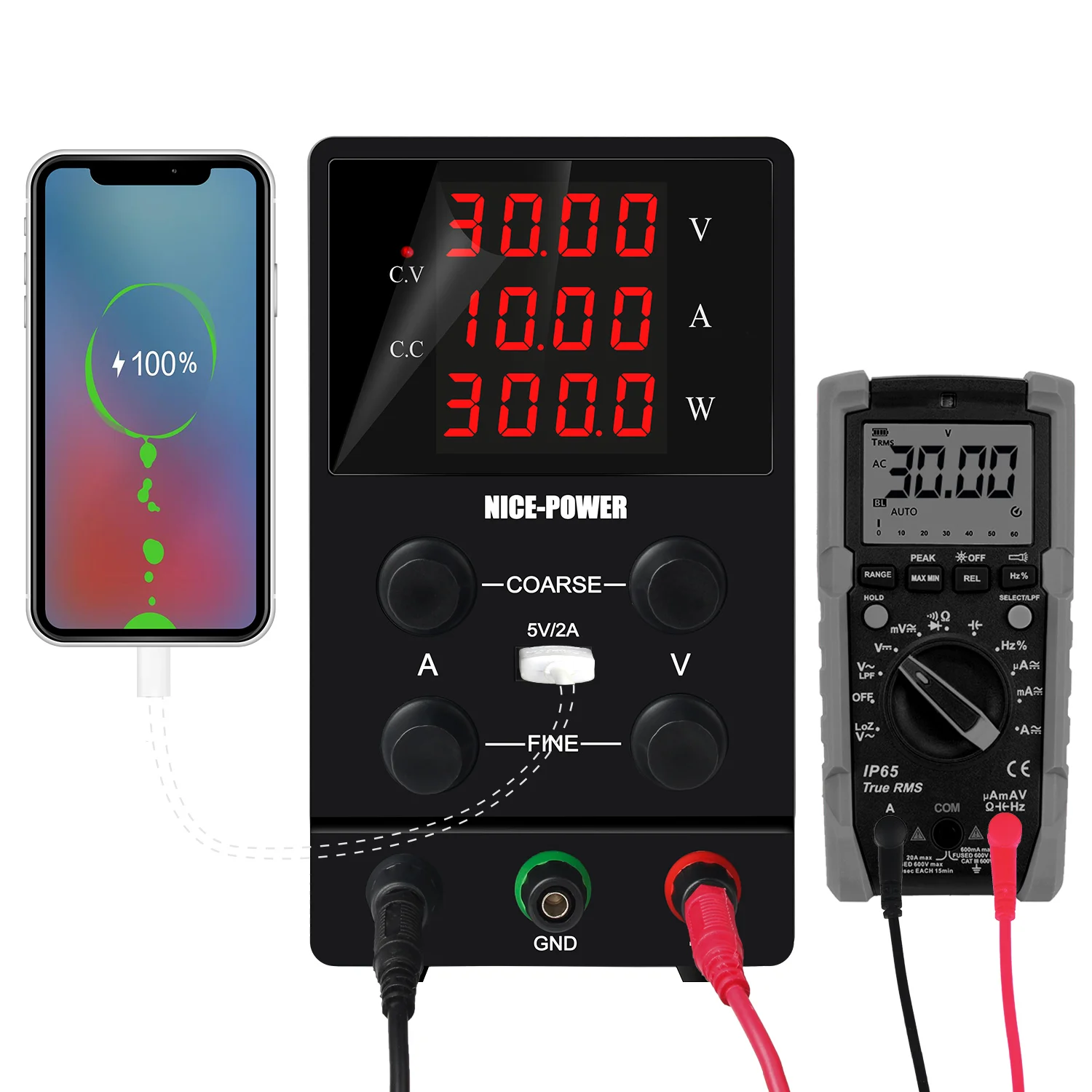

The Bench Power Supply with Encoder Knob has overvoltage and overcurrent protection, and is equipped with an intelligent fan to extend working time and equipment lifespan; Power output 5V/2A power supply, you can charge your phone through this interface

【Automatic conversion of constant voltage and current mode】

The constant voltage mode (C.V.) and constant current mode (C.C.) will automatically switch with the connection of the load. Of course, you only need to rotate the fine and coarse adjustment knobs to achieve the value you want, which is extremely easy. It will become a powerful assistant for your work and life.

Product ParametersSpe
Input Voltage	230V/115V±10%(115V±10%)
Working Temperature	0°C~40°C; Relative Humidity: < 80%RH
Storage Temperature	-10°C~70°C; Relative Humidity: < 70%RH
Constant Voltage State	Voltage stabilityS 1%+3mV
	Load stabilityS 1%+3mV
	Ripple noises 50mVrms
Constant Current State	Current stabilityS 1%+3mV
	Load stabilityS 1%+3mV
	Ripple noises 50mArms (valid value )
Display Accuracy	1%+5digits
Display Resolution	Voltage:00.01V Current:0.001A

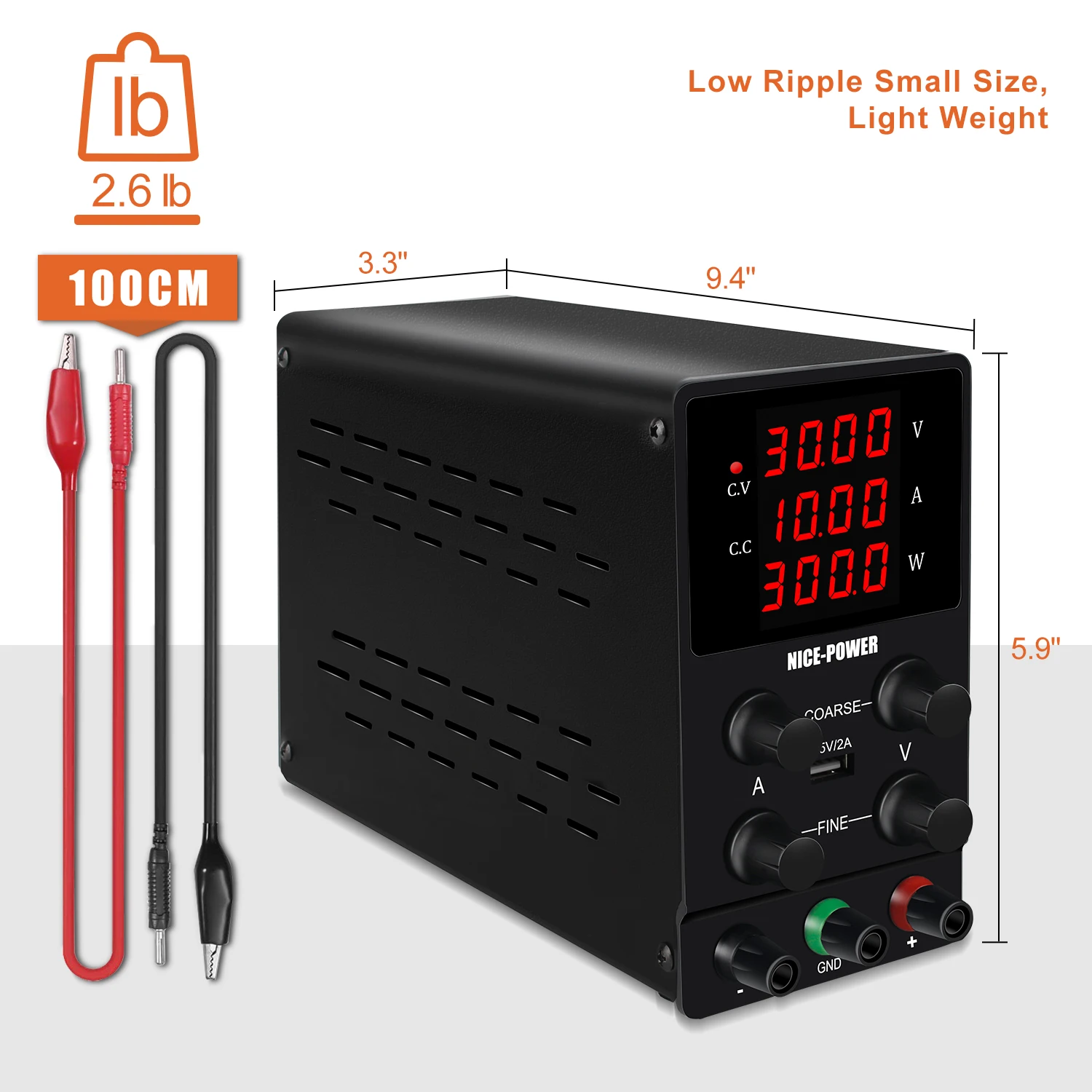

Product Dimension	long 252mm * wide 170mm * high 84mm
Fuse Standard	3.15A(AC 230V Input)/5A(AC 115V Input)

what you will receive

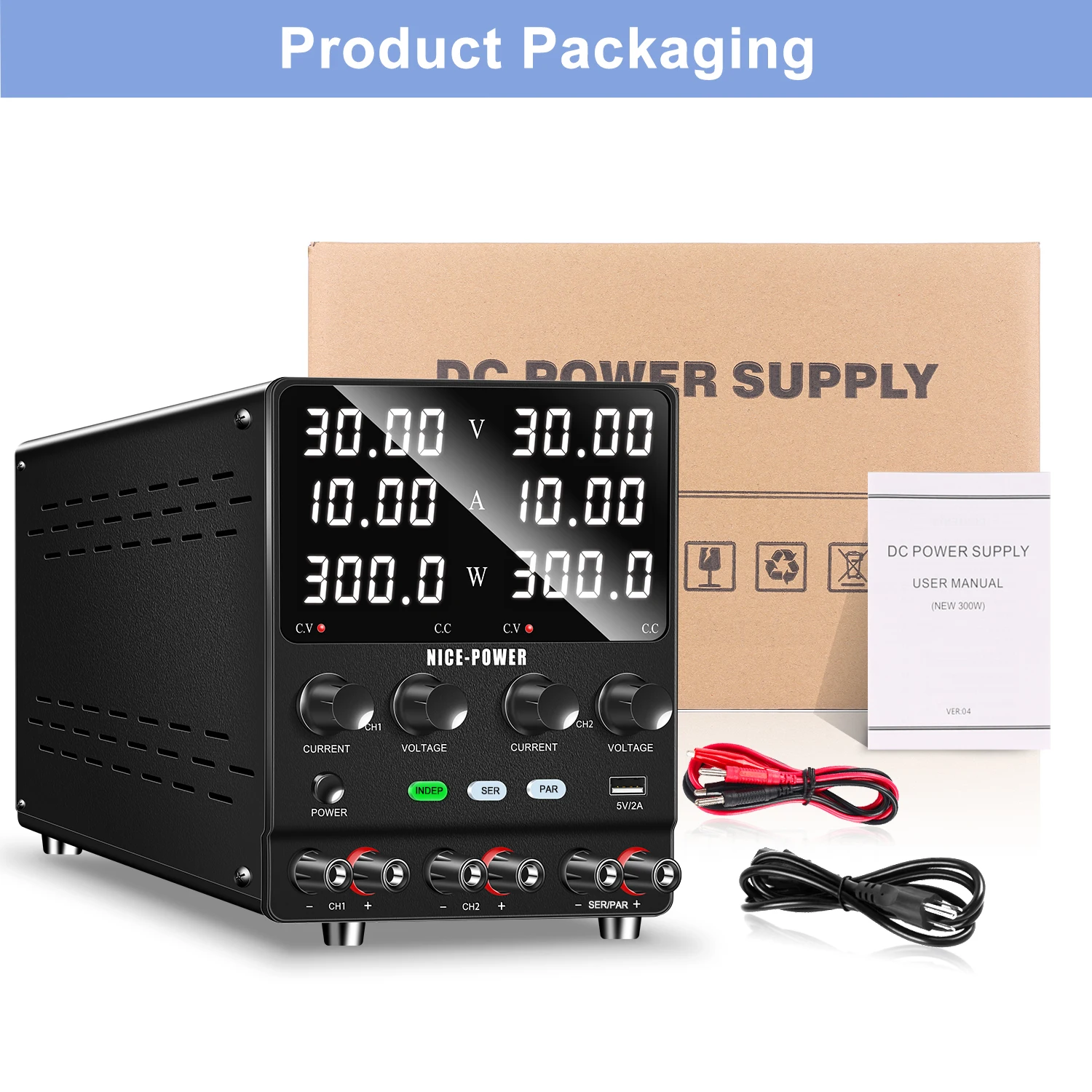

1* DC Power Supply;1Power Adapter(EU/AU/UK/US we will send according to you country);1Black Output Line;1Red Output Line ;1Instruction Book (English);1Pakcgae Box（Hard）;1Certificate of Conformity(1 Year)
