Overview

The YSIDO 2812 V2 Series Brushless Motors are designed for 7" to 9" FPV long-range drones and multirotor builds. offering excellent power. efficiency. and durability. Available in both 900KV and 1115KV options. these motors are engineered with a robust 12N14P framework and optimized for 3S–6S LiPo battery setups. making them ideal for freestyle. cinematic. and endurance flights.

Built with high-quality materials and weighing just 73g. the YSIDO 2812 V2 motors deliver strong thrust with low internal resistance. ensuring stable and responsive performance for large-format FPV drones.

Key Features

• Available KV options: 900KV and 1115KV.

• Supports 2S–6S LiPo battery systems.

• Precision 12N14P internal structure for smooth and efficient operation.

• Sturdy 4mm bearing shaft for enhanced durability.

• Long 250mm 18AWG silicone wires for easy installation.

• Lightweight design at only 73g (excluding wires).

• Compatible with 9" propellers like CF9×4.7.

Specifications

Recommended Application

• 7"–9" FPV Long Range Drones

• Freestyle and Endurance Multirotor Builds

• DIY Custom FPV Airplanes and Quads

Package Includes

• 1 × YSIDO 2812 V2 Brushless Motor (900KV or 1115KV. based on selection)

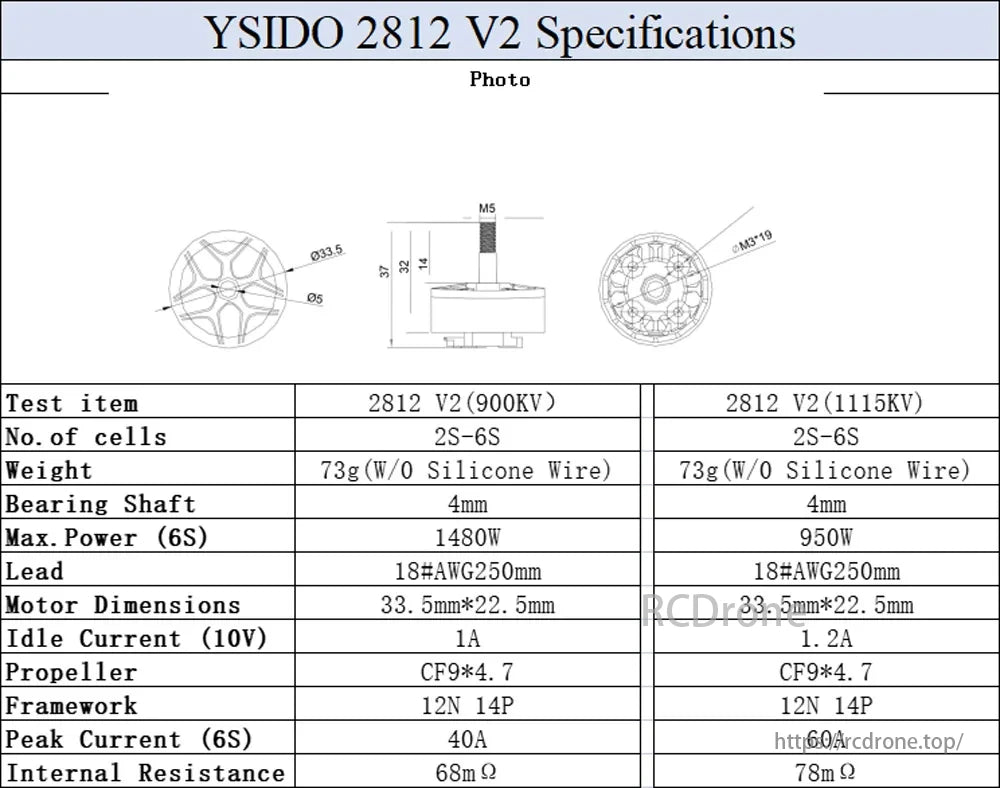

YSIDO 2812 V2 motor specs: 2S-6S. 73g. 4mm shaft. max 1480W/950W. 18#AWG lead. 33.5x22.5mm. idle 1A/1.2A. CF9*4.7 prop. 12N 14P frame. peak 40A/60A. 68mΩ/78mΩ resistance.

YSIDO V2 4Pcs 2812 900KV/1115KV motors for 7in/8in/9in frames. Ideal for long-range drones. multicopters. and fixed-wing. Includes screws and cables.

YSIDO 2812 V2 brushless motor. 900KV/1115KV variants. 3-6S compatible. detailed dimensions and specifications provided.

YSIDO 2812 V2 900KV brushless motor. 4 pcs set with cables and screws. designed for 2-6S operation. Compact and efficient for RC applications.

YSIDO 2812 V2 1115KV brushless motor set includes four motors. cables. and mounting hardware for 2-6S applications.
