FPV 1/4 CMOS 18X Camera SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Universal Joint

Tool Supplies: Cutting

Technical parameters: Value 2

Size: As description

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Origin: Mainland China

Model Number: FPV-1042

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore

Highly Rated Fpv 1/4 Cmos 18x Wdr Zoom 1080p Hd Wide Angle Camera Pal Ntsc With Hdmi Dvr Up To 85% Off [syzPrimu]

UARTIX DC1ZV UART TX S8 0- USB_Dr Dc UART RI OND AV OUT CND DC12V Pwu_CTRL GND Note: HDMI Port only support output PWM CTRL TOP 1832H Movement .



Description:

CMOS:1/4 inch.3MP pixel. wide dynamic.low noise.

Output Resolution: 1920*1080P/30FPS

Optical zoom: 18X. f=4.85~82 mm. 2MP HD Lens

WDR: Up to 105dB

AV Output. 1080P video local storage

Real-time Fast Focus Function. <1s

Support Flip Vertical/Mirror Horizontally/Still Image.AWB/AGC/Automatic color correction

Working temperature: -10°- 55°

Support PELCO-D. SONY VISCA Protocol. compatible Hitachi Digital Movement Protocol.

Size:  88mm×50mm×58mm

Weight: 218g



Features:

3MP effective resolution. 1080P HD video record

Support 18x zoom autofocus function

Can transmit the image for FPV and save the video in euipment.

Mini and light. used for RC Drones

Adopts 105dB WDR. can catch the clear picture in bright and dark area at the same time. even in backlighting or strong light.

Supoer low illumination level. can display the image feature in dim light.

Adopt CVBS output. 1080P HD H.264 compressed storage

Support VISCA.PELCO-D etc. protocol. and support PMW signal control(can use any channel on flight controller to control the ZOOM)

Package Included:

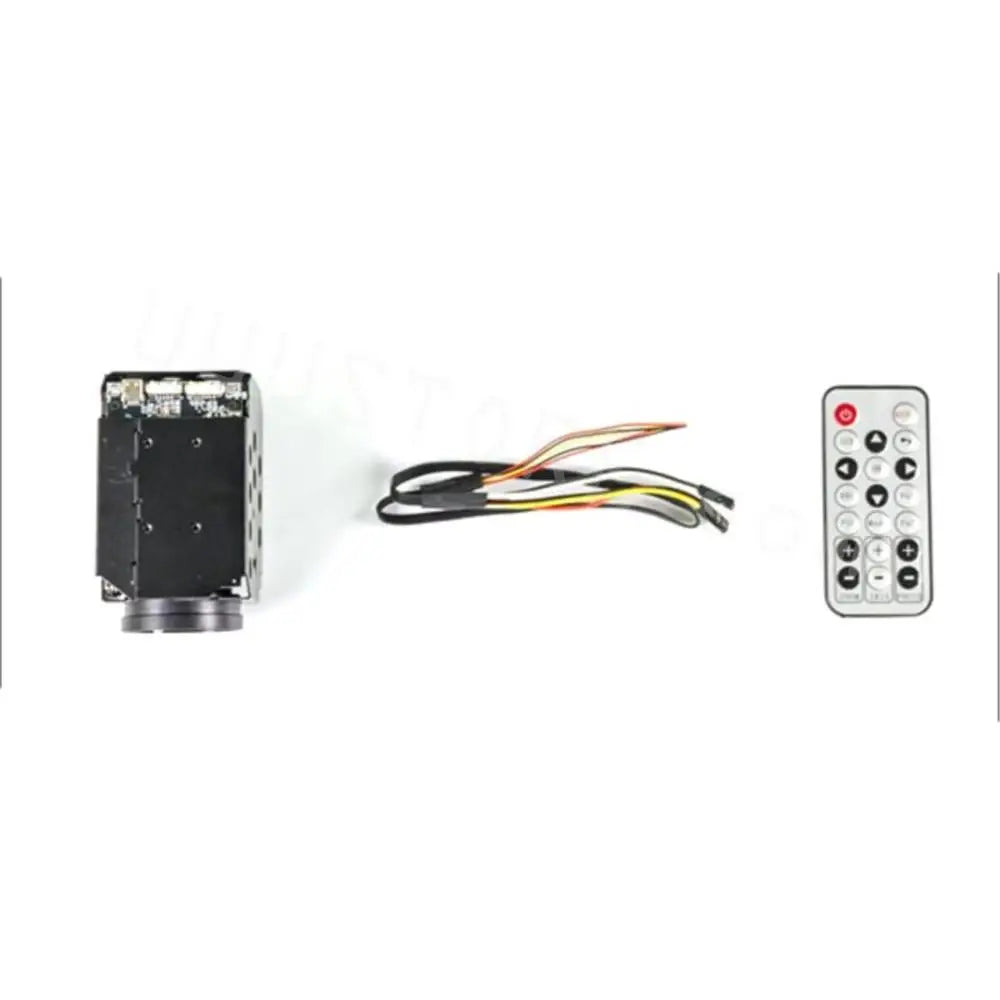

1 x Camera
