Name: Factory Price Renogy 100w Solar Panel Save Big: 55% Off [zn328XtU]
Brand: technovaprecision.com
SKU: HBS16773196986
Price: 29.99 USD
Availability: InStock
Rating: 3.52 (152 reviews)

Factory Price Renogy 100w Solar Panel Save Big: 55% Off [zn328XtU]

Renogy 100w 12v solar panel Overview

The Renogy 100W 12V Solar Panel is a versatile and reliable power solution for various applications, including RVs, boats, and off-grid setups. Built with high-efficiency monocrystalline cells, this panel delivers a 15.7% module efficiency, producing up to 100 watts of power under standard test conditions (STC). The panel features 36 cells arranged in a 3x12 configuration, and its rugged construction includes an anodized aluminum frame and LC tempered glass for enhanced durability. It’s designed to operate in extreme temperatures ranging from -40°F to 176°F (-40ºC to +80ºC) and withstand harsh weather conditions with an IP67-rated junction box and solar connectors. With a compact size of 43.0 x 22.9 x 0.1 inches and a lightweight design at just 5.3 lbs, the Renogy 100W solar panel is easy to install and maintain, making it an ideal choice for both stationary and portable energy needs.

BUILT-IN COMPONENTS

Output Leads (Pair): 12 AWG (27.6 in)

Cell Type: Monocrystalline

Number of Cells: 36 (3x12)

Junction Box: IP67

Solar Connectors: IP67

Factory Price Renogy 100w Solar Panel Save Big: 55% Off [zn328XtU] Specs

Maximum Power at STC: 100W

Module Efficiency: 15.7%

Optimum Operating Voltage (Vmp): 20.7V

Open-Circuit Voltage (Voc): 24.4V

Optimum Operating Current (Imp): 4.84A

Short-Circuit Current (Isc): 5.16A

Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)

Maximum Series Fuse Rating: 15A

Maximum System Voltage: 600V DC (UL)

Certifications: CE, ISO

Weight: 5.3 lbs (2.4 kg)

Dimensions: 43.0 x 22.9 x 0.1 in (1093 x 582 x 3 mm)

Panel Leads (Pair): 12 AWG (27.6 ft)

Material and workmanship warranty: 5 years

Renogy Solar Panel 100W

Renogy 100W Monocrystalline Solar Panel with Grade A Solar Cells, pre-drilled for easy installation. Generates an average of 500 Wh of electricity per day (dependent on sunlight).

What makes a great solar panel? Renogy 100W Grade A Solar Panel stands out with its high-grade solar cells and exceptional performance. With a dimension of 166mm x 156mm, this panel boasts an average power output above industry standards. Our rigorous EL testing ensures zero microcracks, guaranteeing optimal energy production. Each cell is carefully inspected to ensure a tolerance level of 0-2%.

What Makes A Great Solar Panel - Grade A+ Solar Cells

* Solar cells are the most fundamental yet crucial component of a solar panel. They can determine whether a solar panel is highly efficient or not.

* All of Renogy's solar panels use flawless Grade A+ solar cells.

The advantages of Grade A+ solar cells:

1. No visible defects.

2. All the electrical data are in spec.

3. Passes the strict EL test without any microcracks.

* Grade B and C solar cells are inferior to Grade A+.

1. They have visible defects, such as color deviation, paste leakage, large bend, chipped cell, corner breakage, busbar missing, missing print, and watermark. All of these defects can lead to lower conversion efficiency and even a broken solar panel.

2. Lots of microcracks would appear after the EL test.

High Efficiency Grade A+ Monocrystalline Solar Panel with 22% Conversion Rate	Rugged black aluminum frame enhances durability and aesthetic appeal. Anti-reflective coating reduces glare, while corrosion-resistant impact protection ensures a long lifespan. Perfect for rugged outdoor use or everyday applications.	Reliable construction features a rugged aluminum frame and LC tempered class durable TPT backsheet, ensuring long-lasting performance and protection for your Renogy 100W solar panel.

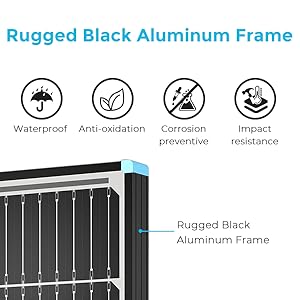

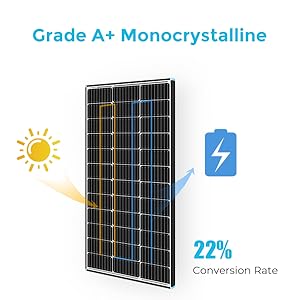

Higher Efficiency Renogy uses an anti-reflective, low iron-tempered glass on top, with a high transparency of up to 91.5%. Compared with conventional solar panels, it allows more direct sunlight to be converted to electrical power.	Rugged Black Aluminum Frame Corrosion-resistant aluminum frame design with sturdy corner supports ensures that it endures the outdoors for an extended period of time without damage or loss of performance. The unique dazzling black frame makes its appearance more advanced, which can meet your needs for aesthetics.	Reliable & Durable This Renogy solar panel is made of advanced encapsulation material with multi-layered sheet laminations to protect cells from physical damage or distortion, improving cell performance and providing lasting solar panel durability.

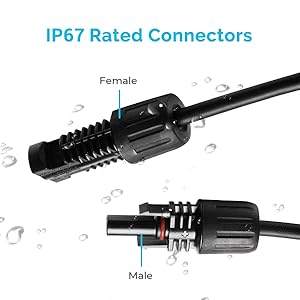

		The Factory Price Renogy 100w Solar Panel Save Big: 55% Off [zn328XtU] includes weather-resistant IP67 rated connectors, a durable design for outdoor use with both female and male connection options.

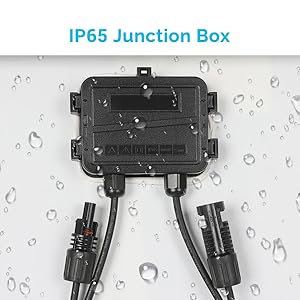

Pre-Drilled Holes for Easy Installation Comes with pre-drilled holes, including ground mounting holes for fast and convenient installation. Compatible with Renogy Z Brackets, Corner Brackets, Pole Mounts and Tilt Mounts.	IP65 Junction Box Complete protection against environmental particles and low-pressure water jets.	IP67 Solar Connectors No need to worry about bad weather. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in. Perfect for your yacht and marine applications.
