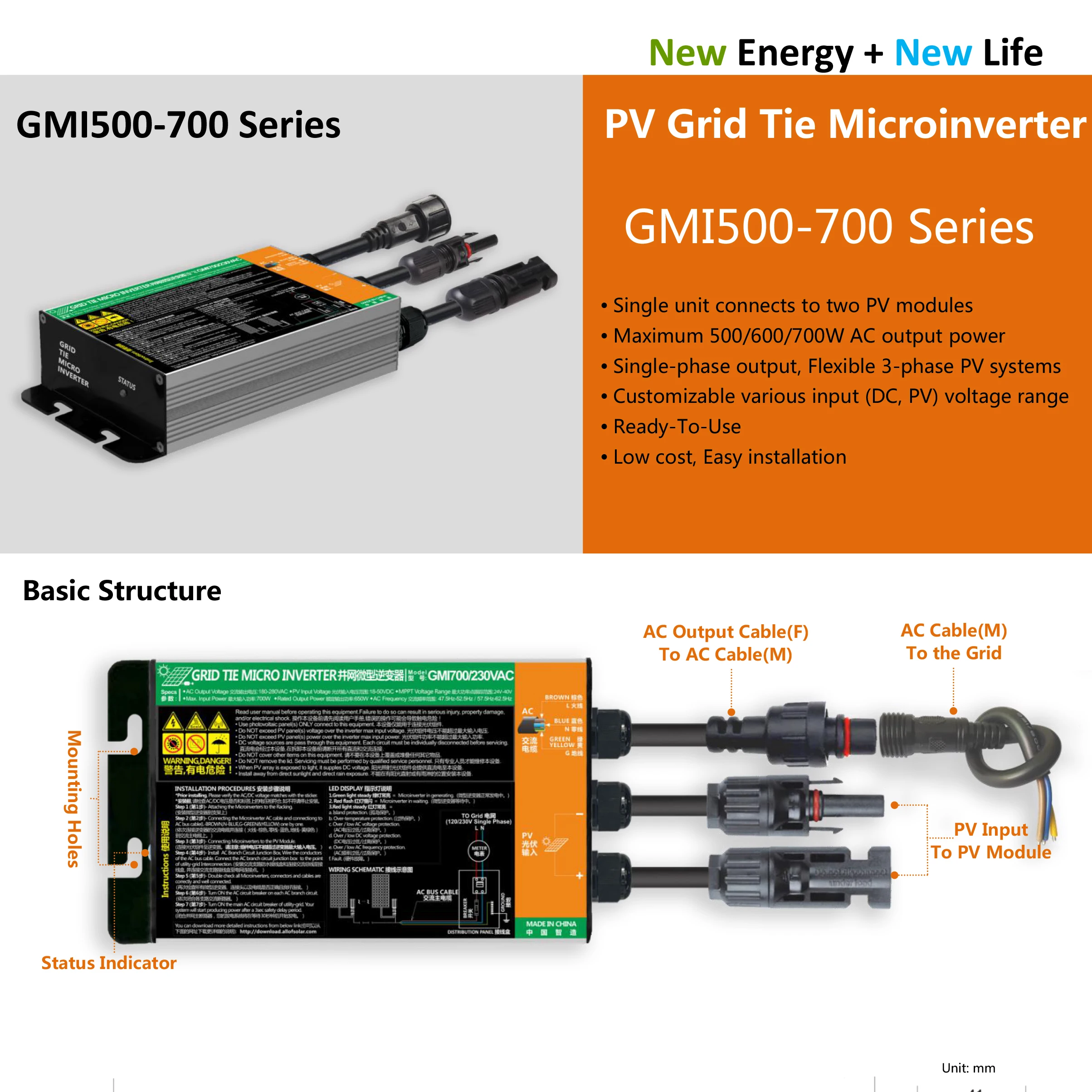

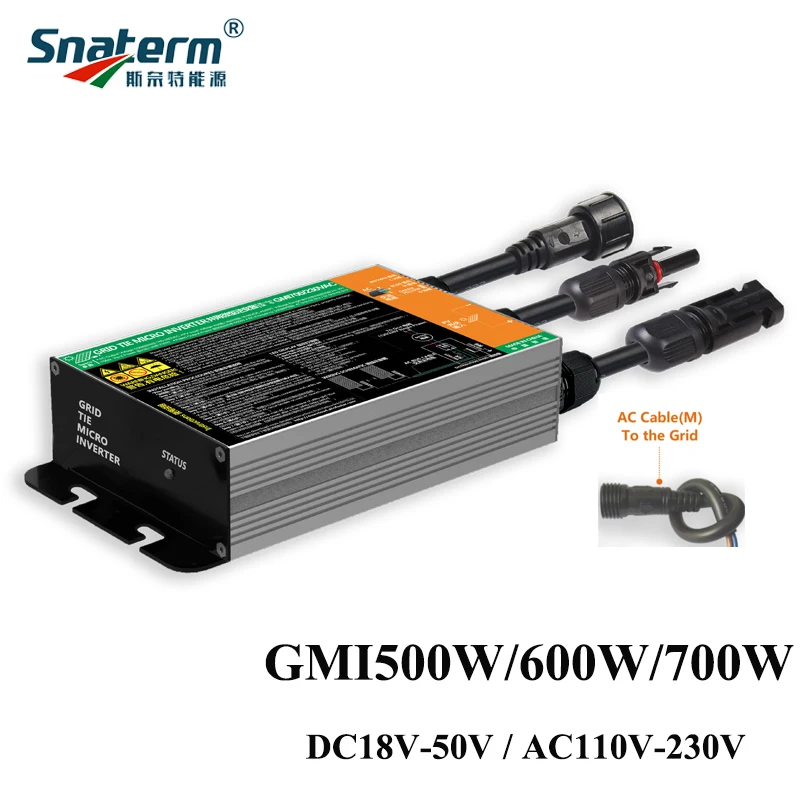

Award Winning Gmi 500w 600w 700w Mppt Solar Grid Tie Micro Inverter Solar Pv On Grid Inverter Ac110/220v ~ Limited Availability [vjytkY2p]

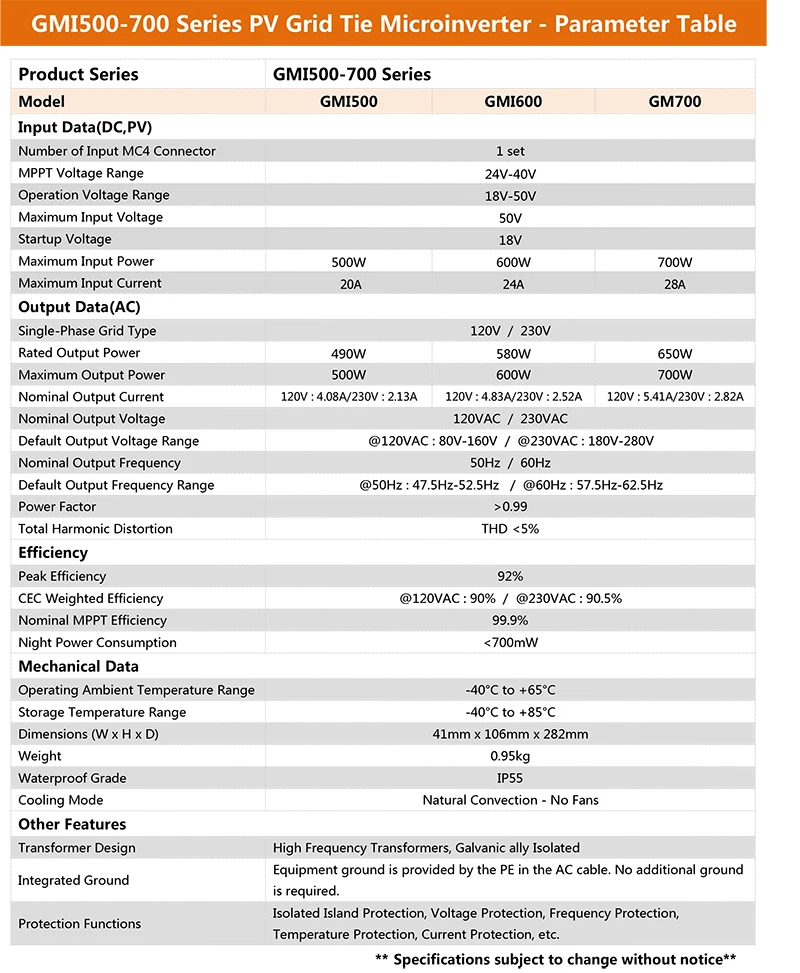

SPECIFICATIONS
Brand Name: Snaterm
Cooling Mode: Natural Convection-no Fans
Input Voltage: 18-50VDC
Inverter Efficiency: 99.9%
MPPT Voltage Range: 24V-40V
Maximum Input Voltage: 50V
Model Number: GMI 500W/600W/700W
Night Power Consumption: < 700mw
OEM: Accepted
Operating temperature range: -40~65C°
Output Frequency: 50Hz/ 60Hz
Output Type: Single Phase
Output Voltage: 120V/230VAC
Peak Efficiency: 92%
Place of Origin: Guangdong, China
Protection Functions: solated Island , Voltage , Frequency , Temperature , Current etc

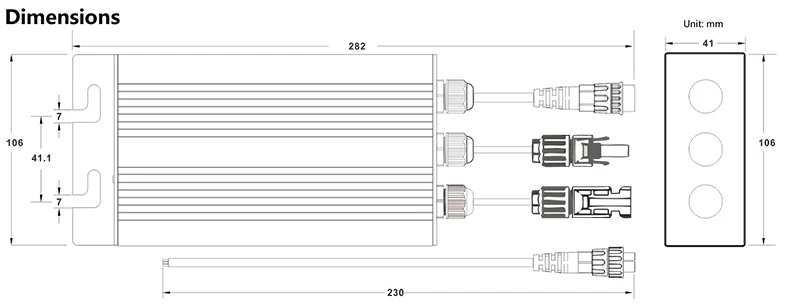

Size: 41mm*106mm*282mm
Startup Voltage: 18V
Type: DC/AC Inverters
Waterproof Grade: IP55
Weight: 0.95kg
cannot be higher than 50V.
Vmp = solar panel working voltage; Voc = solar panel open circuit voltage.So don’t think that 50V is the working voltage (Vmp)
Why not use 12V solar panels? 12V panel working voltage Vmp18-20V, open circuit voltage Voc20-24V.
the 12V panel is just a starting voltage. If the sunlight is weak, the working voltage will be lower than 18V. It is easy to make
the inverter work unstable, and the inverter will start repeatedly. It is easy to damage the inverter.
Recommended Solar Panel Voltage: Vmp30-39V; Voc38-46V
• Use solar panel ONLY connect to this equipment.

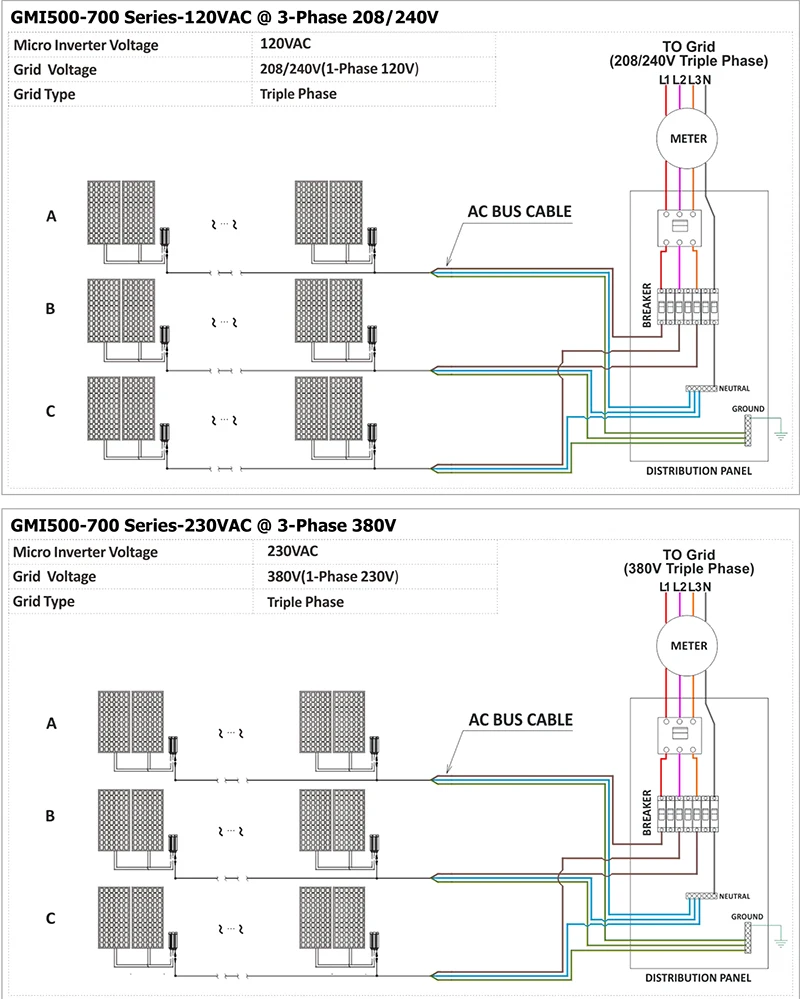

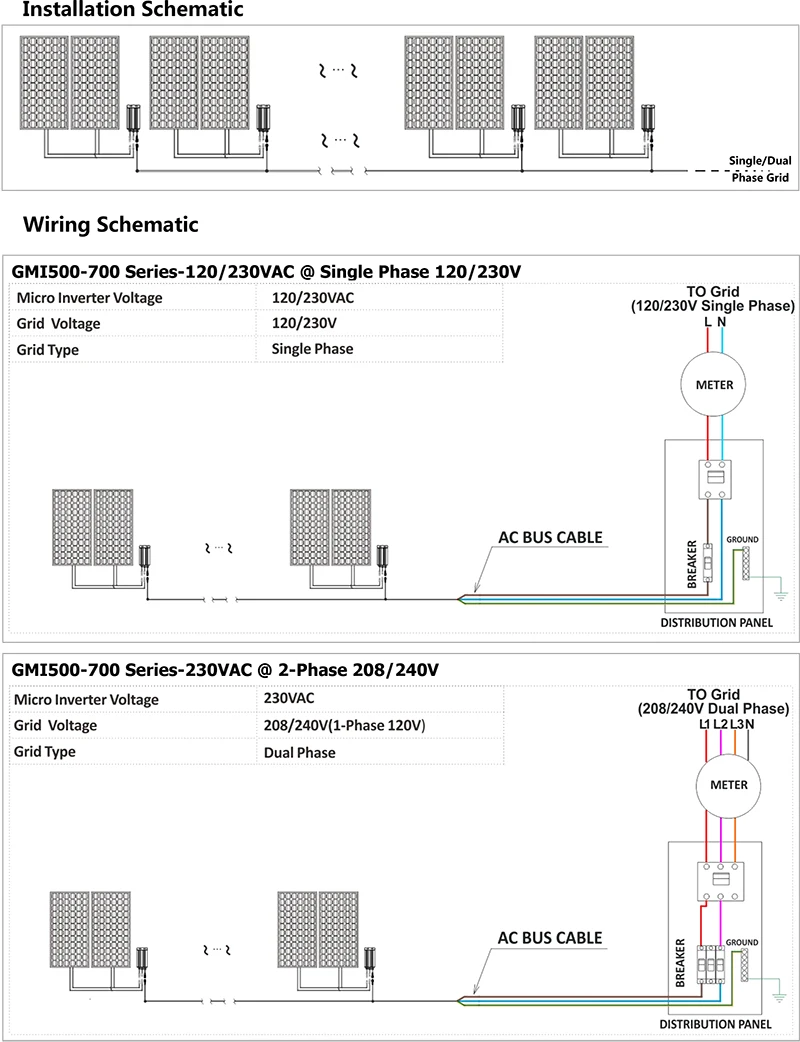

• This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,and the power grid is working properly, When the power grid stopped working, it will also stop generating.
• Do NOT exceed PV panel(s) voltage over the inverter max input voltage.(Voc<50V)
• Do NOT exceed PV panel(s) power over the inverter max input power.

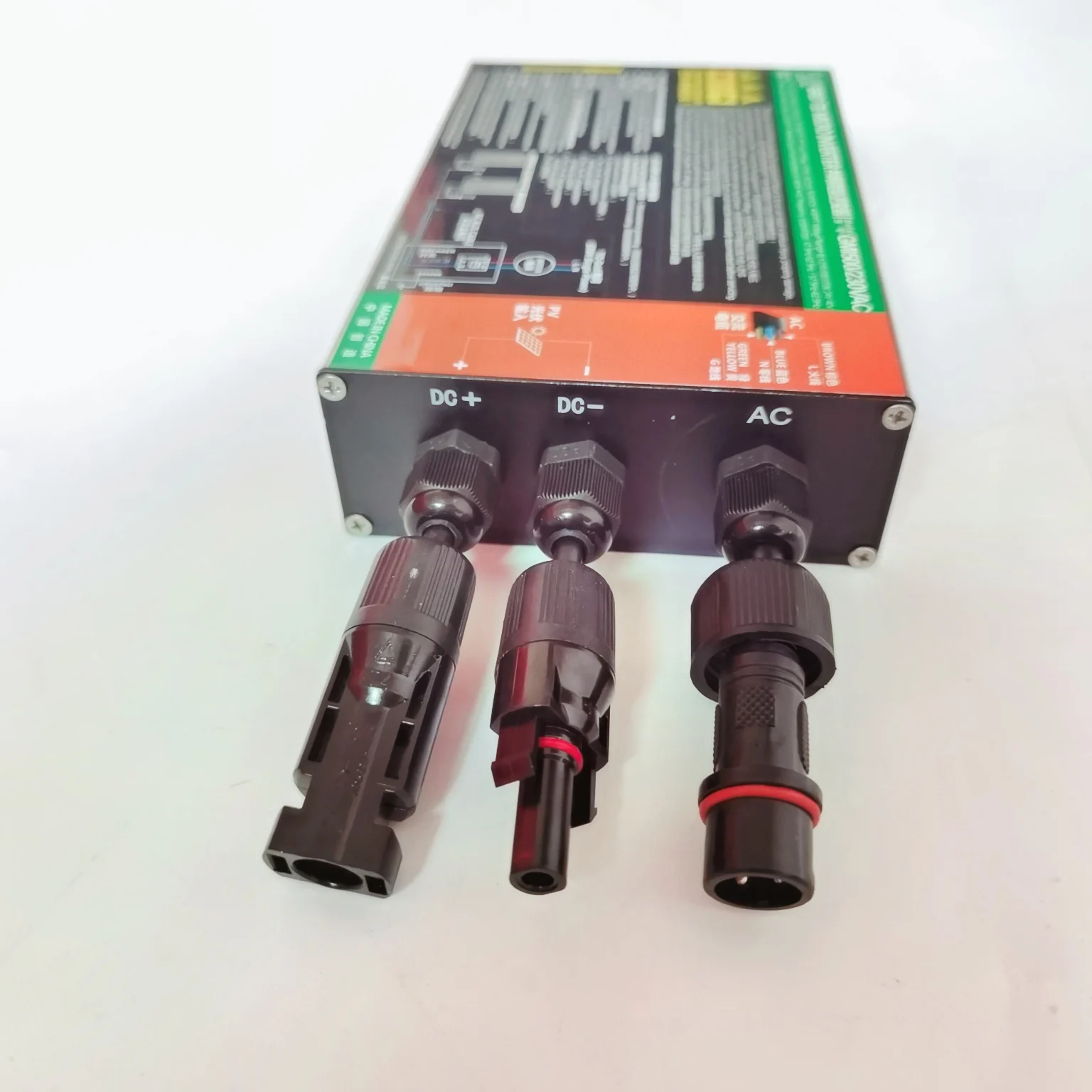

• The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be careful about this problem.
• Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)
LED DISPLAY:
1.Green light steady=Microinverter in generating.
2.Red flash=Microinverter in waiting.
3.Red light steady
a.Island protection.
b.Over-temperature protection.
c.Over/low AC voltage protection.
d.Over/low DC voltage protection.
e.Over/low AC frequency protection.
f.Fault.
Package Include:
1XGrid Tie Inverter

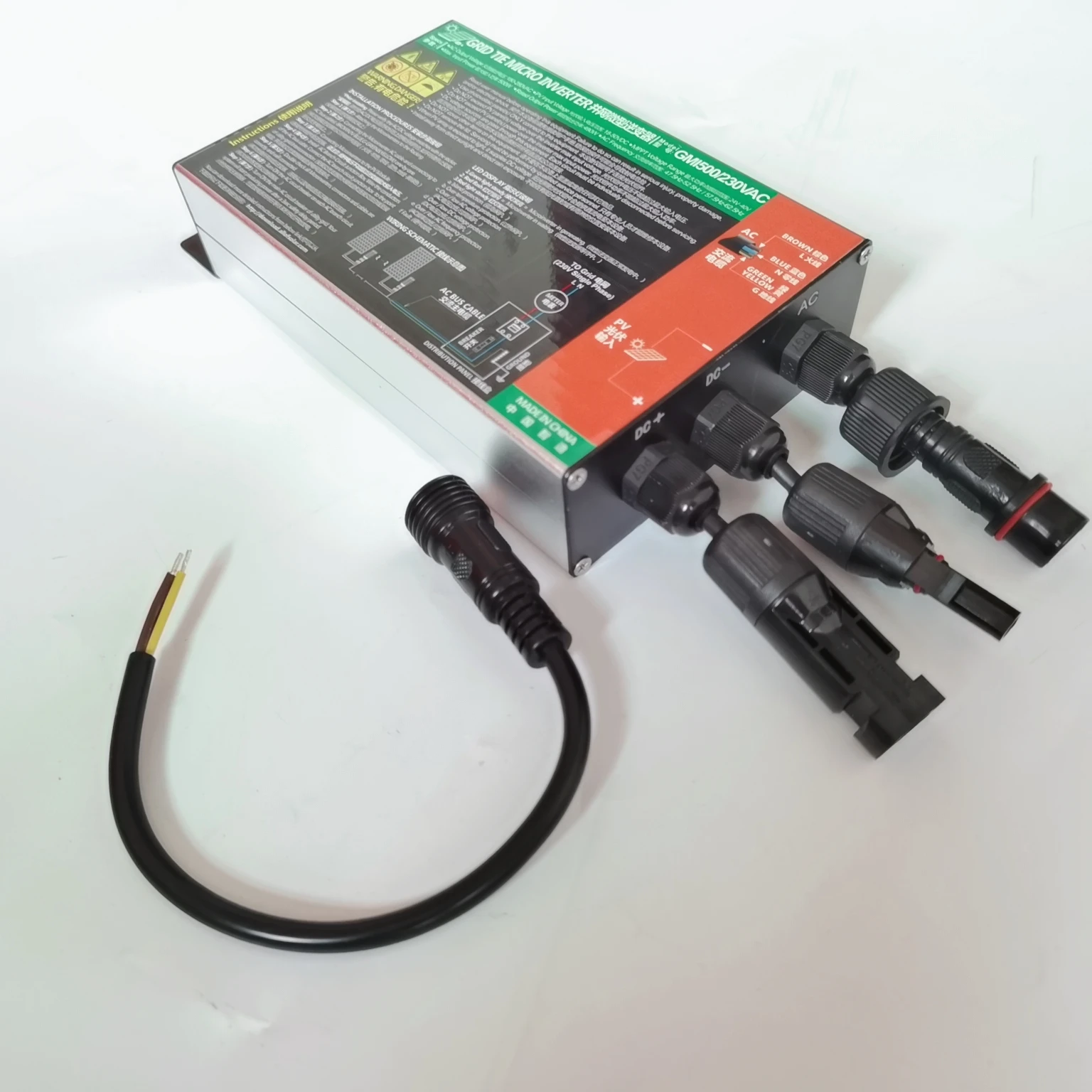

1 x AC Cable 30CM
1 x English User's Manaul
