Massive Discount 50 Amp, 125 Volt, Black & White Plug, Industrial Grade Gadget [BMnr6UmN]

Features

• One piece contacts reduce friction and overheating
• Rugged nylon construction resists impact, sunlight, chemicals, and rough use
• Ratings and NEMA I.D. permanently marked on device
• Industry exclusive limited lifetime warranty

NEMA

• Non-NEMA

Specifications

• Country of Origin: Mexico
• RoHS Compliant: False

Electrical Specifications

• Amperage: 50 A
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage Withstand: 2000V minimum per UL 498
• Grounding: Grounding
• Maximum Working Voltage: 125V as rated
• Pole: 2
• Temperature Rise: Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
• Voltage: 125 VAC
• Wire: 3

Material Specifications

• Assembly Screws: Nickel-Plated Brass
• Cable Clamp Screw: Philips Head, SS 304
• Color: Yellow-White
• Compression Nut, Strain Relief: Nylon
• Connector Contact - Spring: 0.041-inch thick Nickel Plated Brass
• Contact - Binding Plate: 0.100-inch thick Nickel Plated Brass
• Contact Rivet: Nickel-Plated Brass
• Dust Shield: Santoprene TPE
• Face Module: Nylon
• Grommet/Gasket: Santoprene TPE
• Ground Post: Nickel Plated Brass
• Ground Shunt: Nickel Plated Bronze
• Housing: Nylon
• Housing Material: Nylon
• Plug Blade: 0.1000-inch thick Nickel-Plated Brass
• Plug Blade Shroud: SS 302/304
• Standard Cable Clamp: Nylon
• Terminal Block: 0.062-inch thick Nickel Plated Copper
• Terminal Set Screw: SS 302/304
• Wiring Chamber: Nylon

Product Features

• Brand: Black and White
• Device Type: Locking Plug
• NEMA: Non-NEMA

Standards and Certifications

• CSA C22.2 No. 42: File 152105
• NOM: 057
• RoHS: Compliant
• UL 498: File E13399
• Warranty: Limited Lifetime Warranty

Mechanical Specifications

• Cord Range: .680 - 1.125
• Product ID: Ratings and Catalogue No. molded into face and stamped into shroud
• Terminal Accom.: AWG #10 to #4 Stranded Wire
• Terminal ID: X, W, Y, and Green for ground

Environmental Specifications

• Environment: Corrosive
• Flammability: UL94 V-2
• Operating Temperature: -40°C to 75°C

Downloads

Brochure

Instruction Sheet

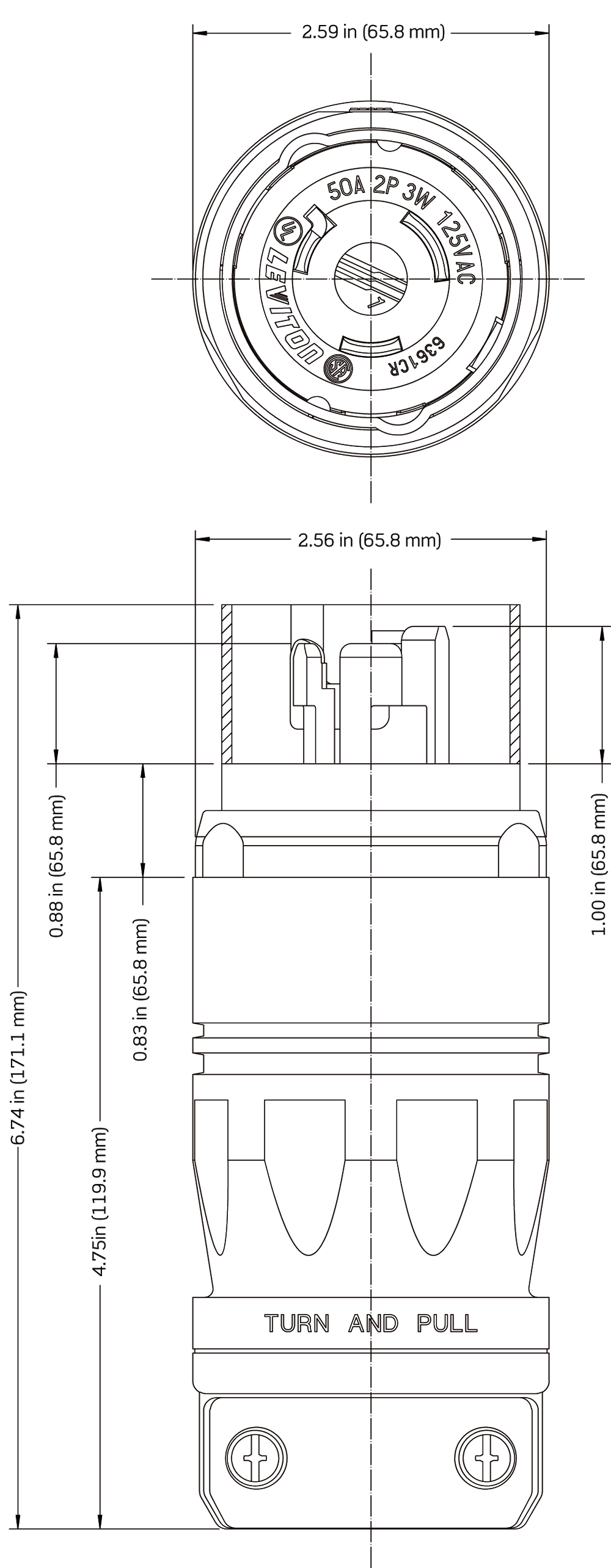

Dimensional Drawing
