Problem Solver Eu 6.2kw Hybrid Solar Inverters 48v Battery Bank To 230v Max Pv 500v Build-in Pure Sine 120a Mppt Solar Charger Controller Christmas Gift Special [doLvsZrg]

Advantage:

1. Ship from European warehouse, delivery within 3-7 days.

2. No need to pay VAT.

Unsupported delivery areas:

1. Spanish island region. The postal code starts with "35" and "38".

2. Remote areas in France and areas with transport restrictions.

PowMr EU 6.2KW Hybrid Solar Inverters 48V Battery Bank Powerwall to 230V Max PV 500V Build-in Pure Sine 120A MPPT Solar Charger Controller

Overview:

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Feature:

1.Pure sine wave inverter

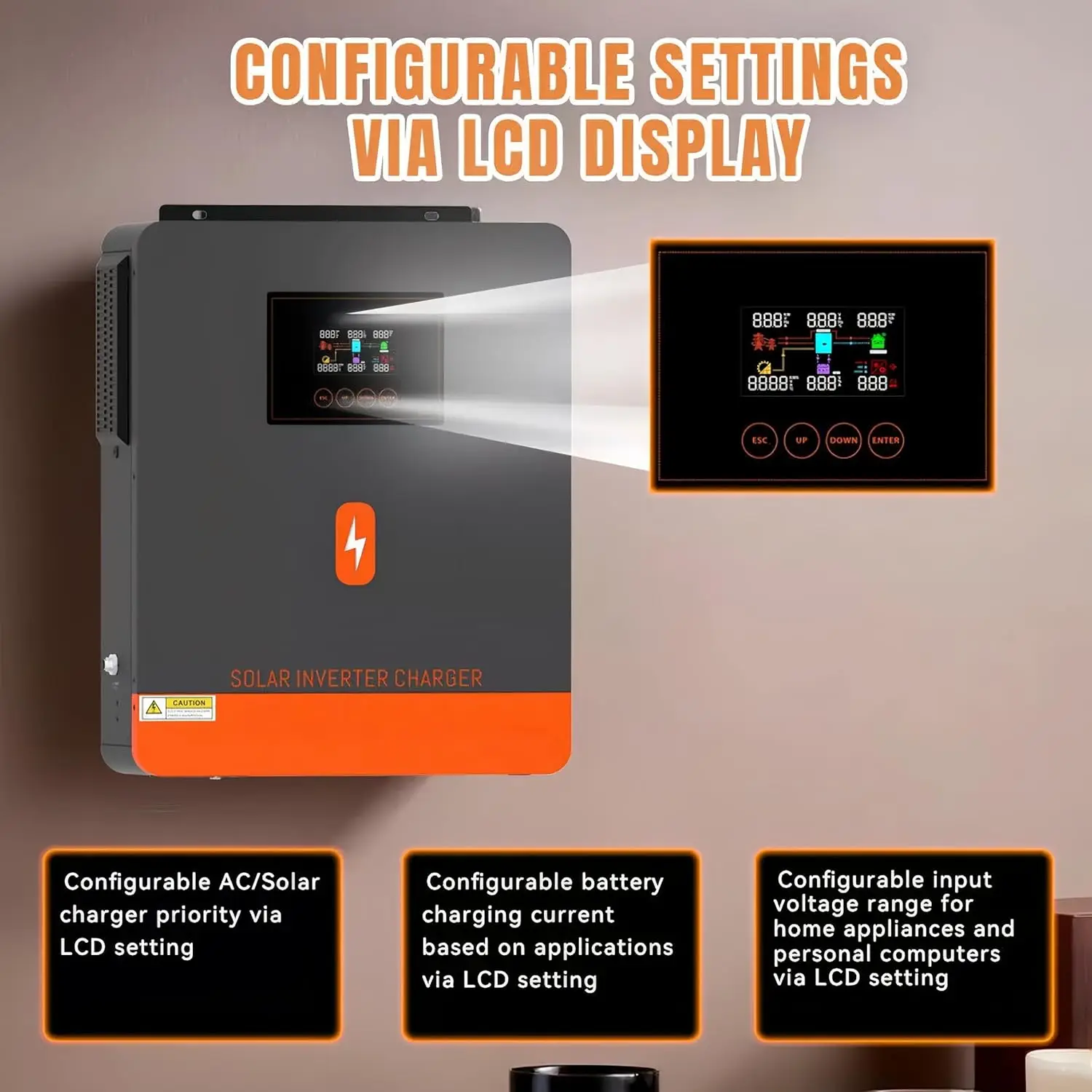

2.Configurable input voltage range for home appliances and personal computers via LCD setting

3.Configurable battery charging current based on applications via LCD setting

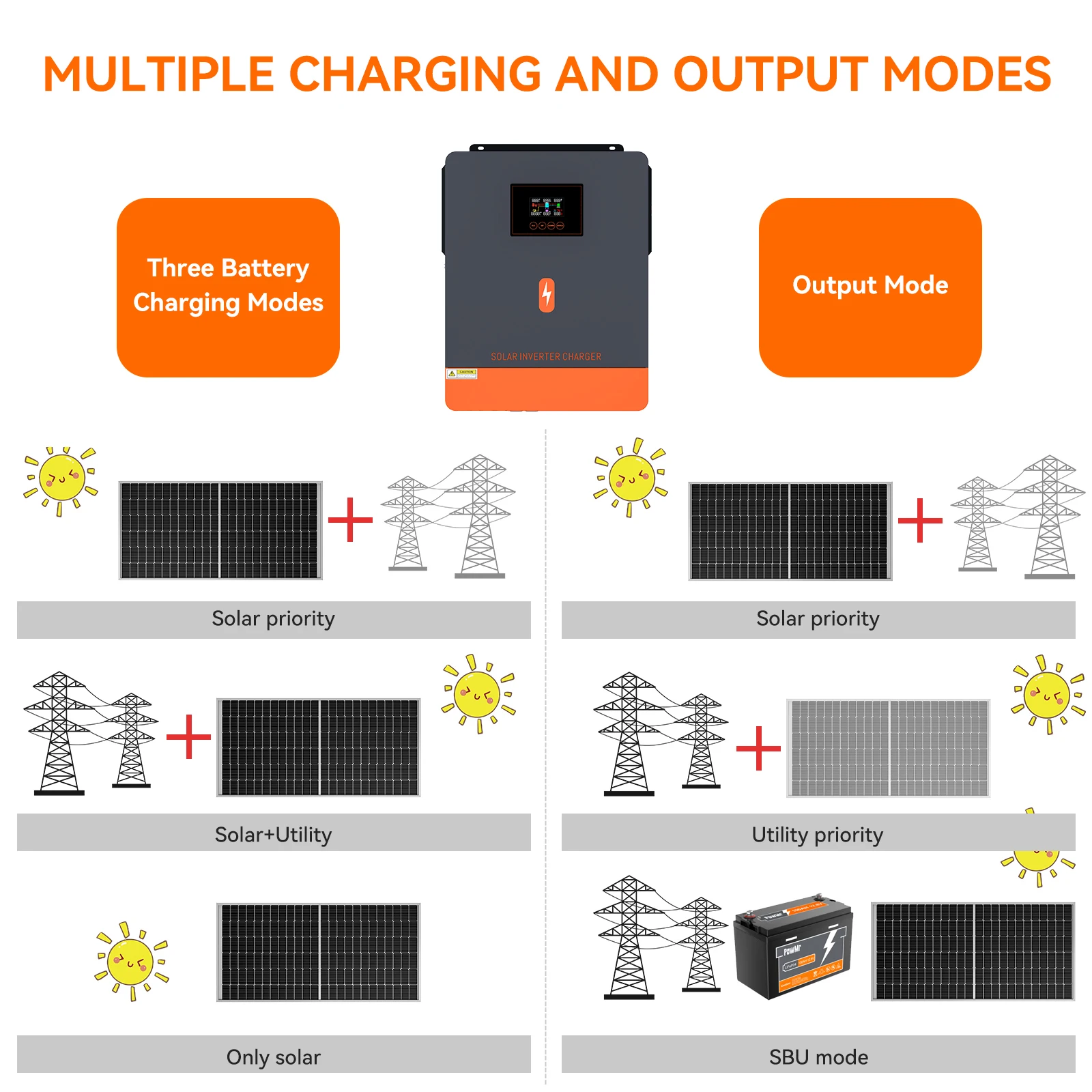

4.Configurable AC/Solar Charger priority via LCD setting

5.Compatible with mains voltage or generator power

6.Auto restart while AC is recovering

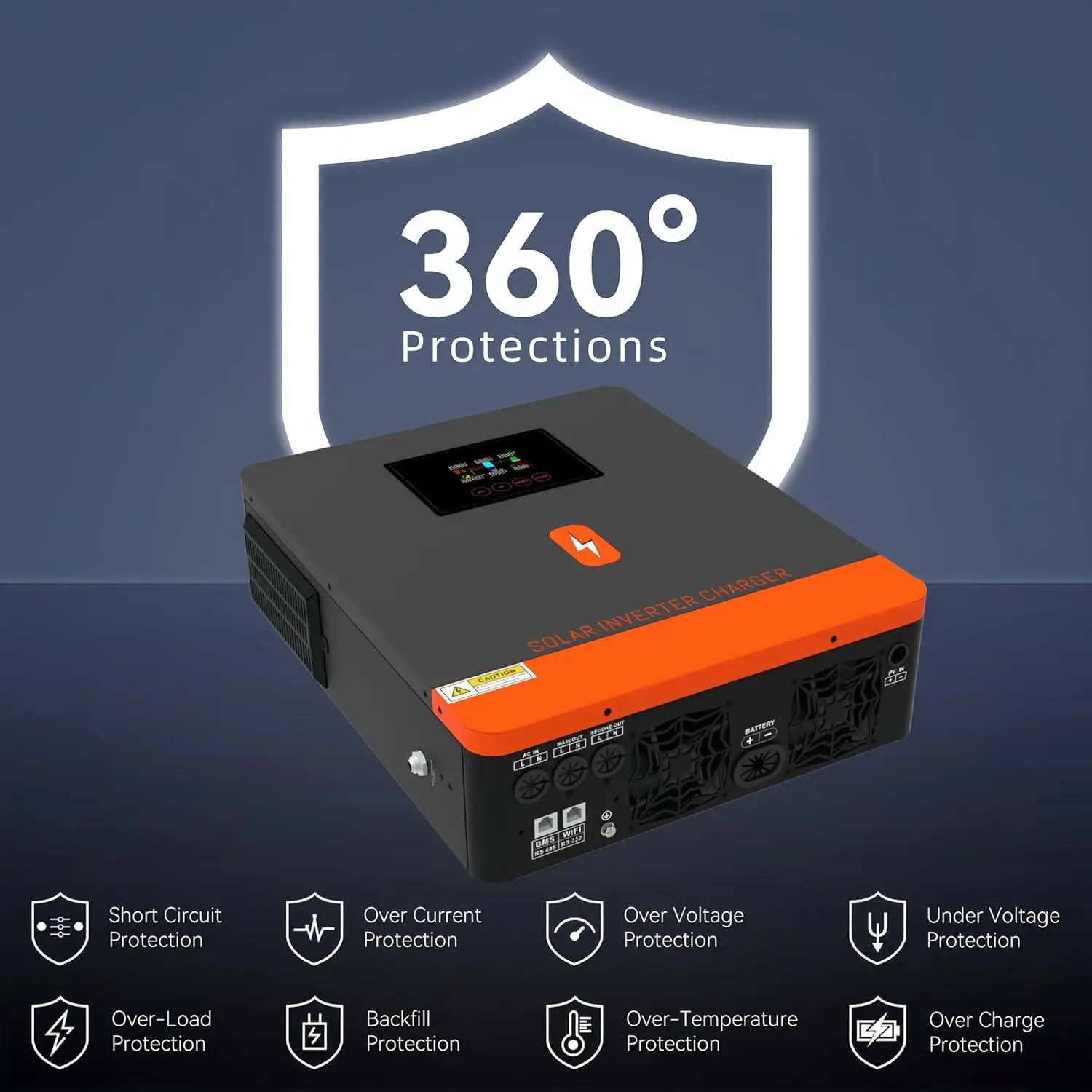

7.Overload/ Over temperature/ short circuit protection

8.Smart battery charger design for optimized battery performance

9.Cold start function

10.For grid connection or off grid use

11.Dual AC Output

Specification:

Table 1 Line Mode Specifications

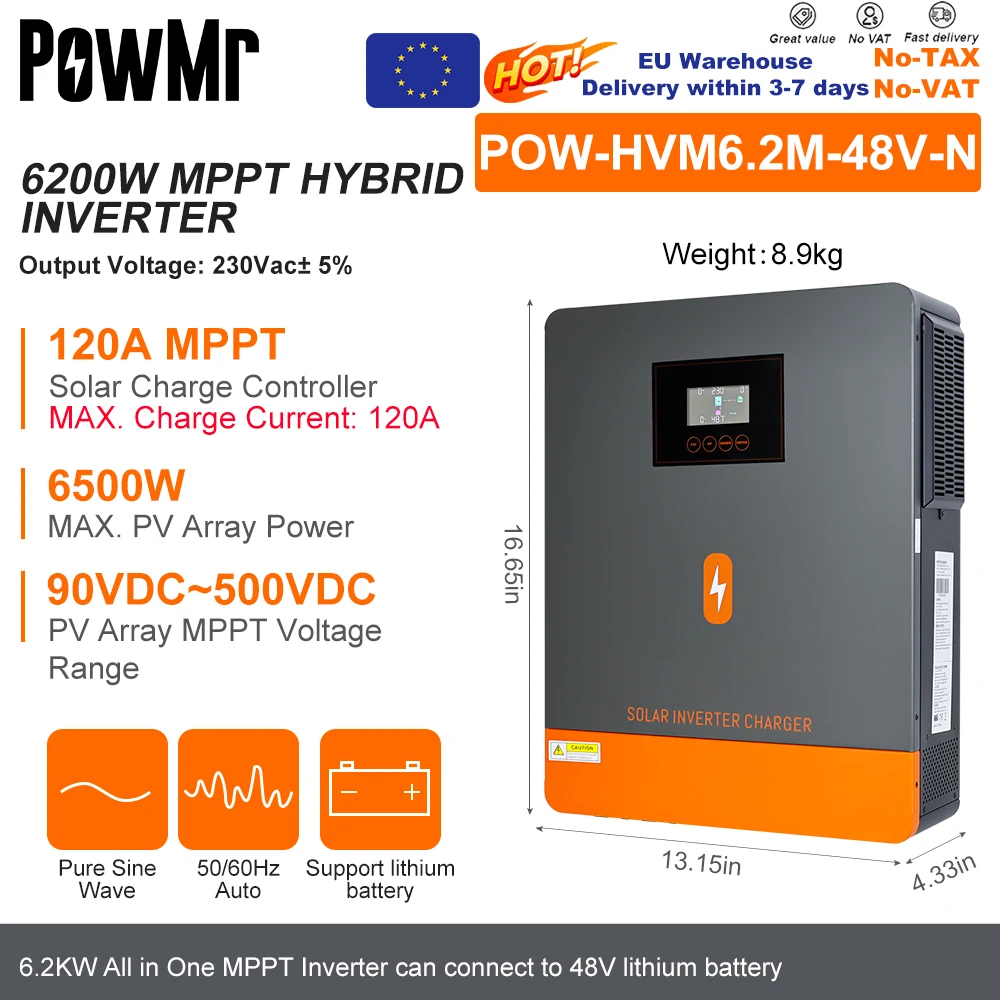

INVERTER MODEL	POW-HVM6.2M-48V-N
Input Voltage Waveform	Pure Sine Wave(Utility or Generator)
Nominal Input Voltage	230Vac
Max AC Input Voltage	300Vac
Efficiency(Line Mode)	>95%( Rated R load,battery full charged)
Transfer Time	10ms typical(UPS);20ms typical(Appliances)
Table 2 Inverter Mode Specifications

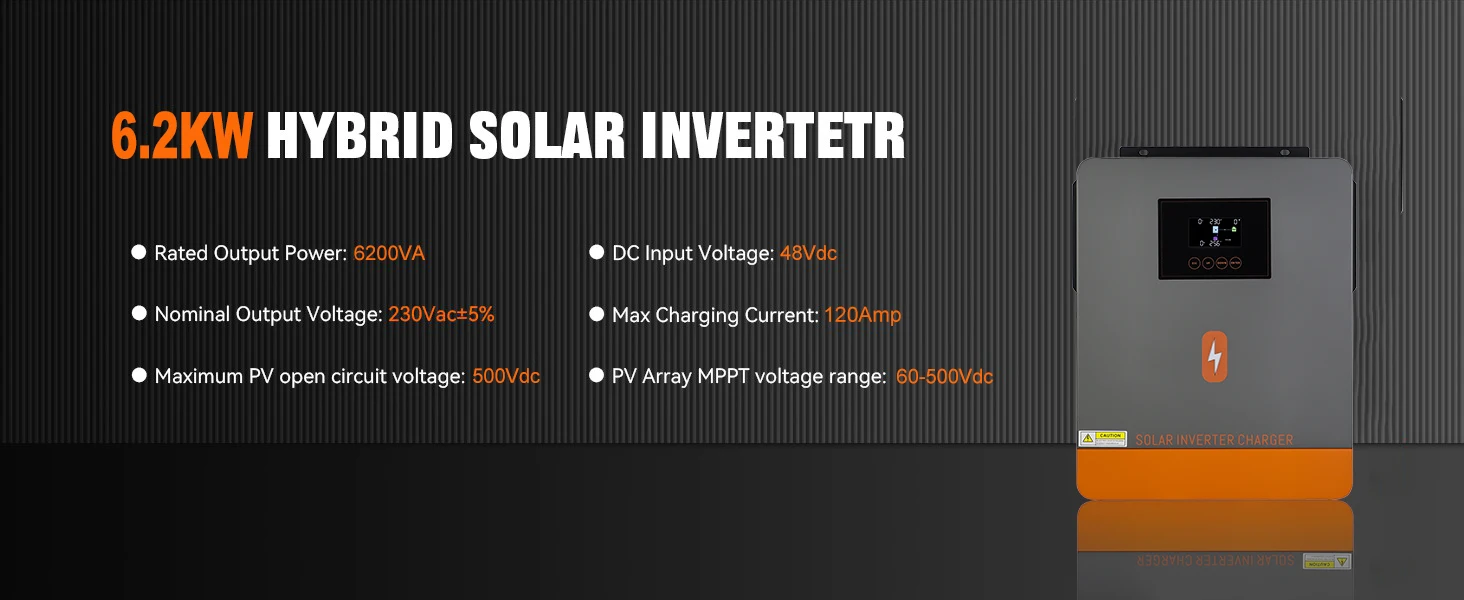

Rated Output Power	6.2KW
Output Voltage Waveform	Pure Sine Wave
Output Voltage Regulation	230Vac±5%
Output Frequency	50HZ
Peak Efficiency	93%
Overload Protection	3s@≥150% load;5s@101%~150% load
Surge Capacity	2* rated power for 5 seconds
Nominal DC Input Voltage	48VDC
Cold Start Voltage	46.0VDC
No Load Power Consumption	50W
Table 3 Charge Mode Specifications
Utility Charging Mode
Charging Algorithm	3-Step
AC Charging Current (Max)	100A
MPPT Solar Charging Mode
Max. PV Array Power	6500W
Nominal PV Voltage	360VDC
PV Array MPPT Voltage Range	60VDC~500VDC
Max. PV Array Open Circuit Voltage	500VDC
Max Charging Current(AC charger plus solar charger)	120A
Tabel 4 Grid-Tie Operation
Nominal Output Voltage	220/230/240VAC
Feed-in Grid Voltage Range	195-253VAC
Feed-in Grid Frequency Range	49-51±1Hz/59-61±1Hz
Nominal Output Current	26.9A
Maximum Conversion Efficiency(DC/AC)	97%
Table 5 Two Load Output Power
Full Load	6200W
Maximum Main Load	6200W
Maximum Second Load(battery model)	2066W
Main Load Cut Off Voltage	52VDC
Main Load Return Voltage	54VDC
